Posts: 1,411
A year or so ago I bought an alignment tool on eBay. It had a clear acrylic handle with a nylon cap screw in the end of it. It was OK but there was room for improvement. I bought a lathe a few months ago and I'm always looking for a project to make on it, so I decided to make a better alignment tool. I bought an inexpensive screw driver and used the handle. The shaft is 1/2 inch nylon rod with a nylon cap screw in the end.
Drilling the nylon rod for the cap screw
[Image: https://farm2.staticflickr.com/1925/4429...5a94_k.jpg ]
Philco Service Tools by
Steve Davis , on Flickr
Tapping the nylon rod
[Image: https://farm2.staticflickr.com/1912/4429...9c52_k.jpg ]
Philco Service Tools by
Steve Davis , on Flickr
Drilling the head of the cap screw for clearance
[Image: https://farm2.staticflickr.com/1936/4429...8ed4_k.jpg ]
Philco Service Tools by
Steve Davis , on Flickr
Reducing the shank diameter so the tool will fit through the holes in the chassis
[Image: https://farm2.staticflickr.com/1938/4429...512b_k.jpg ]
Philco Service Tools by
Steve Davis , on Flickr
Drilling the handle
[Image: https://farm2.staticflickr.com/1923/4515...4129_k.jpg ]
Philco Service Tools by
Steve Davis , on Flickr
The shank has been installed in the handle using a swinging press
[Image: https://farm2.staticflickr.com/1946/4448...e6a2_k.jpg ]
Philco Service Tools by
Steve Davis , on Flickr
[Image: https://farm2.staticflickr.com/1919/4448...5958_k.jpg ]
Philco Service Tools by
Steve Davis , on Flickr
[Image: https://farm2.staticflickr.com/1911/4448...a09b_k.jpg ]
Philco Service Tools by
Steve Davis , on Flickr
Steve
(This post was last modified: 10-09-2018, 09:48 PM by
Steve Davis .)
Posts: 5,170
Very nice Steve! About 5 years ago I
posted how to make those on the Phorum . I don't have a lathe so it was less polished but it got the job done. Similar ones started showing up on ebay but they are pretty easy to make. Yours are like your cabinet reproductions...outstanding!
Posts: 1,205
Steve, are you planning to offer any to the us Phorum members?
I too purchased one off Ebay, but as you mentioned, there is room for improvement.
If I could find the place called "Somewhere", I could find "Anything"
Tim
Jesus cried out and said, "Whoever believes in me , believes not in me but in him who sent me" John 12:44
Posts: 1,411
Tim, If there is some interest, I will probably make a few and offer them. I am also working on a tool set for restuffing bakelite condenser blocks. I will try to get something posted on that in the next day or so.
Posts: 2,573
steve
Posts: 22

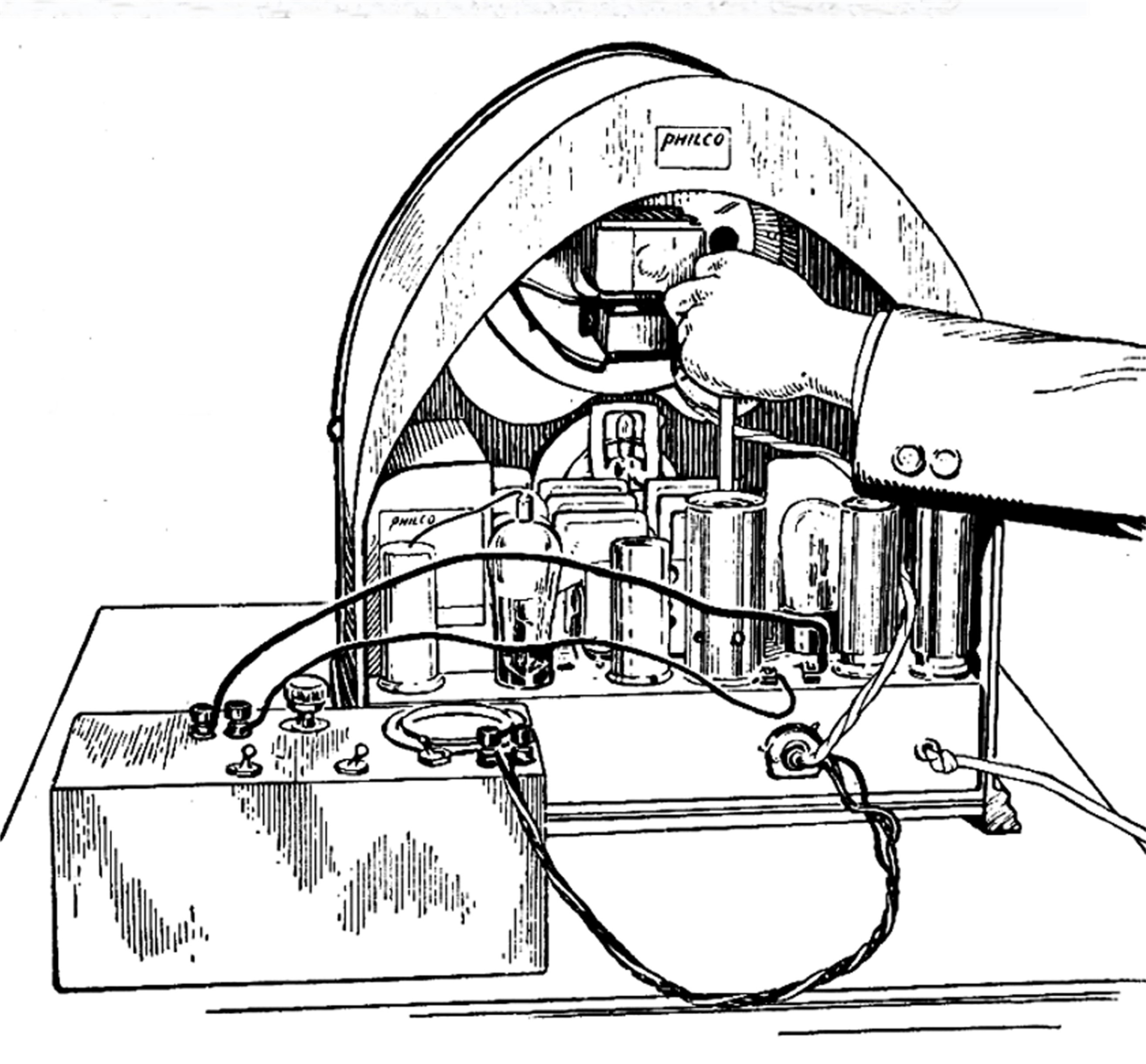

Posts: 16,507
Just make sure that suit's buttons are not metal.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 4,106
Im in for one too, and the bakelite block set..
Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Posts: 1,411
I have posted an ad in the "For Sale" section.
Posts: 36

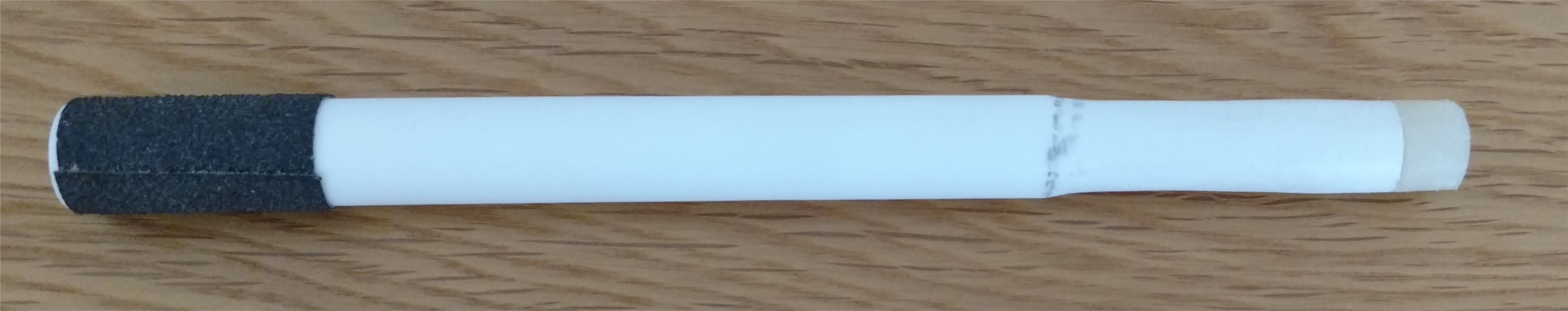

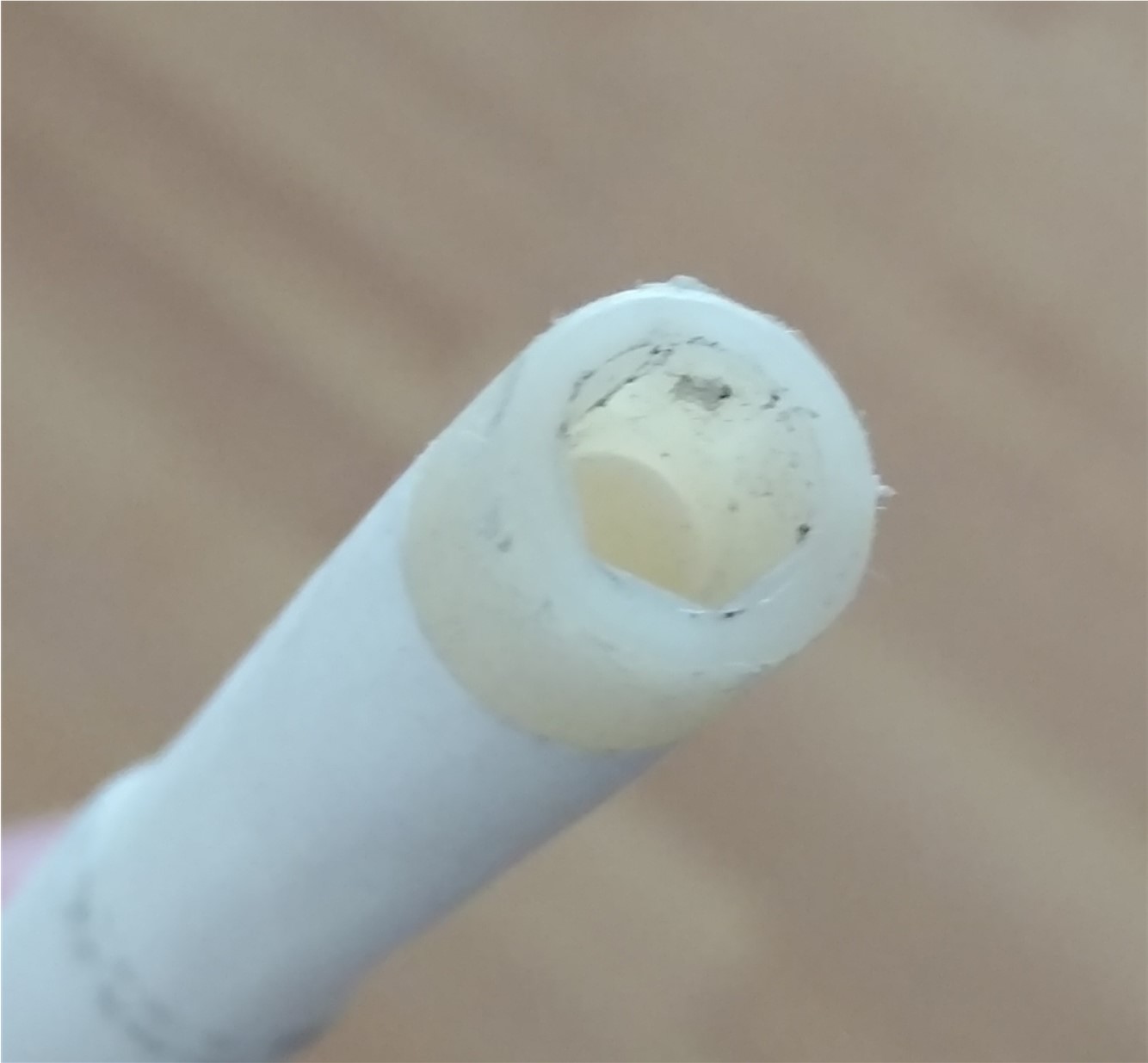

I know this is an old thread, but I used the tips on this forum to make a couple of alignment tools today. I used PEX toilet supply line and heated it so that I could thread a metal 5/16-18 bolt into it. I then removed the bolt and used my newly formed threads to accept a 5/16-18 nylon socket head cap screw. This allows the screw to be replaced if need be. The oak dowel stiffens the PEX tubing and extends the handle; it can be cut to length as needed.
Attached Files
Image(s)
Posts: 1,262
Being the proud owner of a MGB understand about making tools. Good Job.
Posts: 36
Thanks! May your tools keep the Prince of Darkness at bay...
Posts: 116
David,
Posts: 1,262
Nothing like a leaking master cyl. This is part of the family everybody needs a bad habit!
https://philcoradio.com/phorum/showthrea...#pid186992
