[Vlad95]

RodB
You are European yourself
I'm Canadian for the last 30 years
But not Yankee

[radiorich]

Hello Vlad95 ,
Very Funny !
Sincerely Richard

[Vlad95]

By the way.
osanders0311

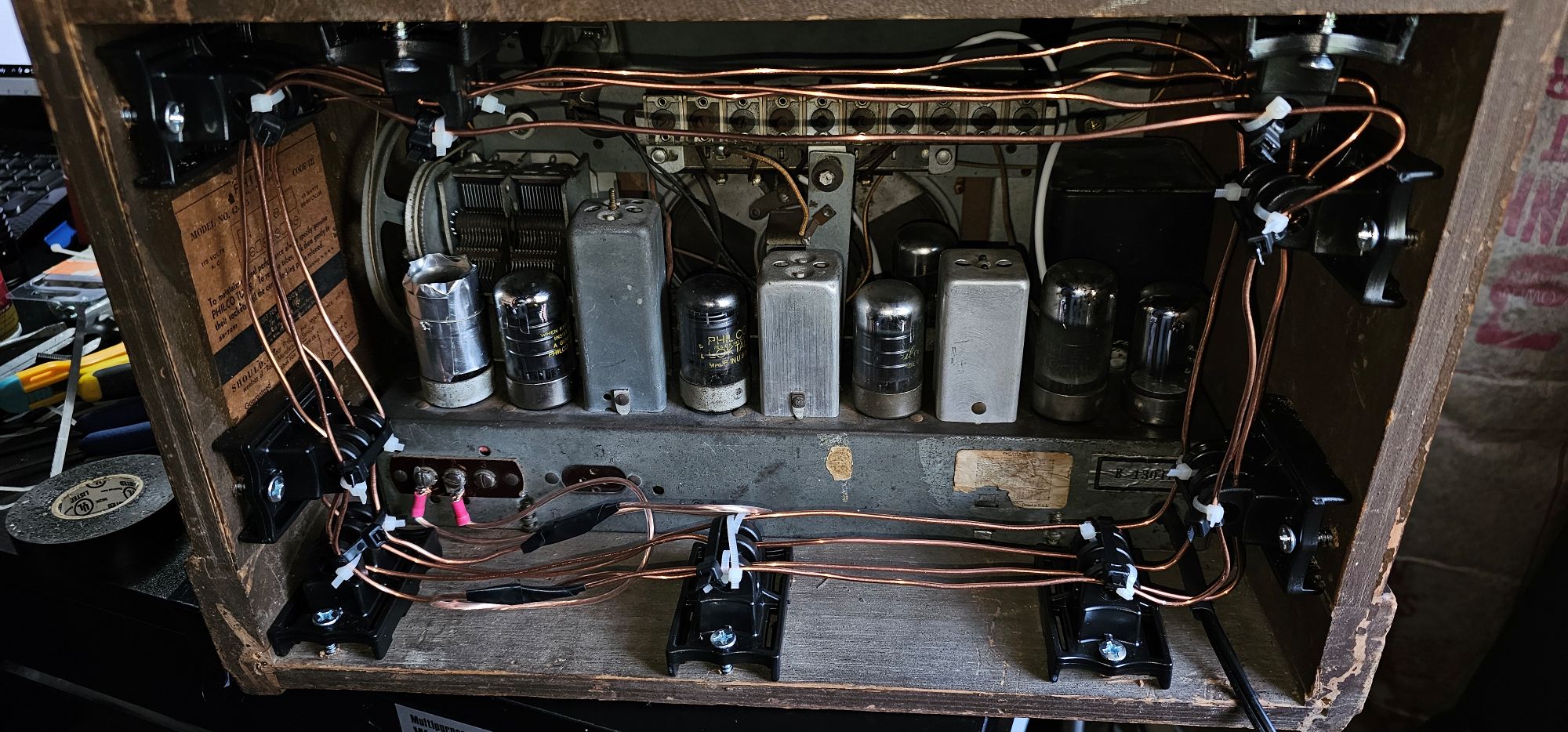

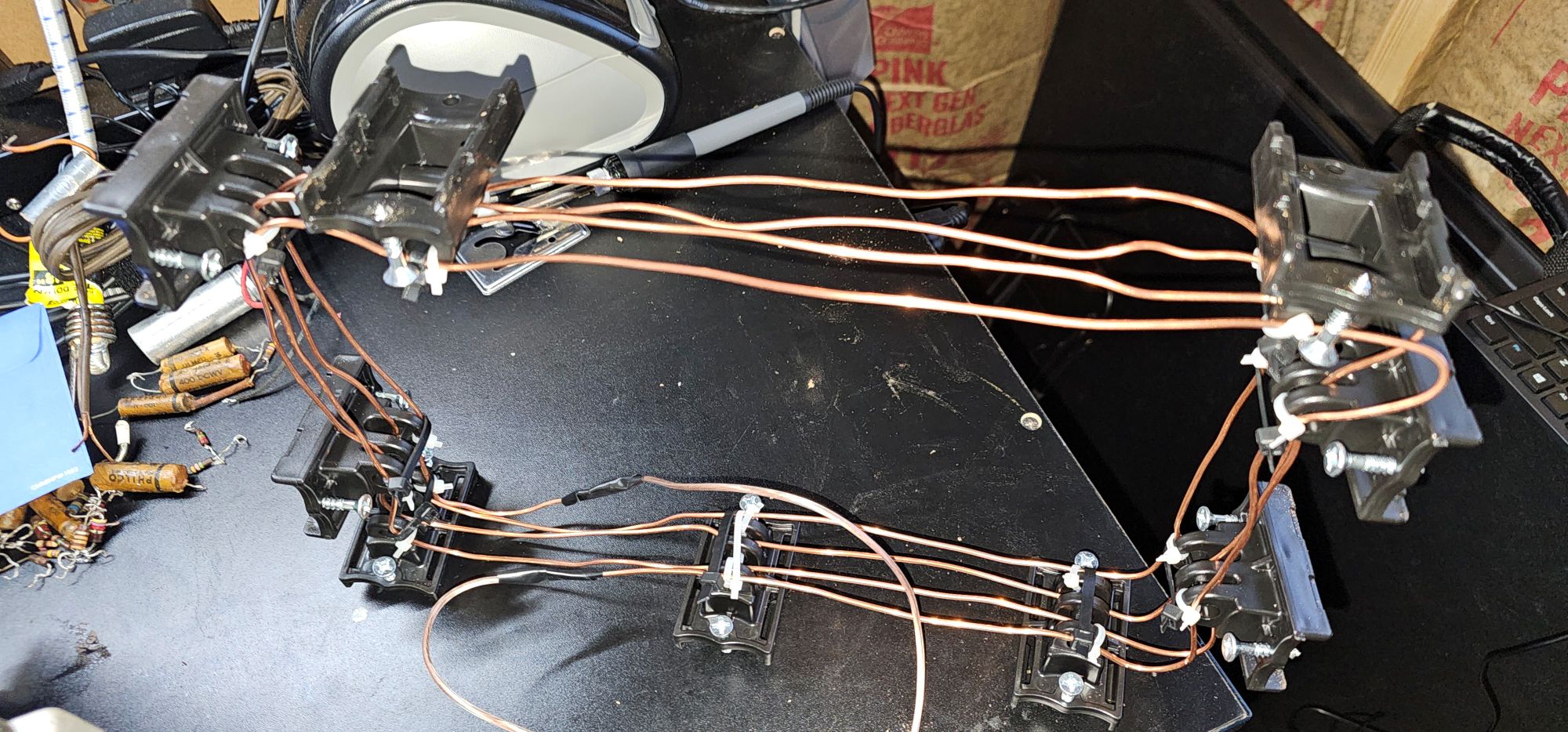

Take a look here: Dial cord stringing Guides
May be here you can fount correct string setting.

[RodB]

Vlad, you nailed it. Swiss and German roots.

[Vlad95]

RodB

[osanders0311]

Thanks Rod,
"When you hear the background hiss and no station it usually indicates that the oscillator quit" probably my luck it has quit, and I don't currently have a signal generator for testing."

As for the tuning knob, not European but since the cable was broken when I received the radio the string must be backwards. And it's working perfect going the wrong way.

[osanders0311]

Vlad95,
Thank you for the stringing guides and wow there are so many

[MrFixr55]

Hi OSanders,

Look carefully at the band switch. Turn it slowly and "wiggle" it around the desired band. Try the shortwave and preset bands. Use Caig DeOxit D5 to clean the contacts. The stuff is not cheap, but it works very well on switches. (Do not use it on volume controls; use DeOxit F5 fader lube instead.)

If you do not have a signal generator, you can use another radio. Tune the radio to a station that you can (or could have) receive on both sets. Have the sets close to each other with shields on the convertor tubes (if there are any) removed. u can (or could have) received on both sets. Tune the radio in question through the band. at some point, equal to the set frequency of the good radio + the IF frequency of the radio in question, you should hear changes in the signal on the good radio. If this occurs, the oscillator stage is working.

[osanders0311]

Ok MrFixr55,
I have tried the DeoxIT D5 on the band switch and even though it has relieved the tension I felt when turning the knob, I still wasn't able to receive any broadcast. As for testing the Oscillator using another radio, I don't have another old radio but tried with one that I had which received AM stations and didn't notice any change in the signal while tuning the Philco.

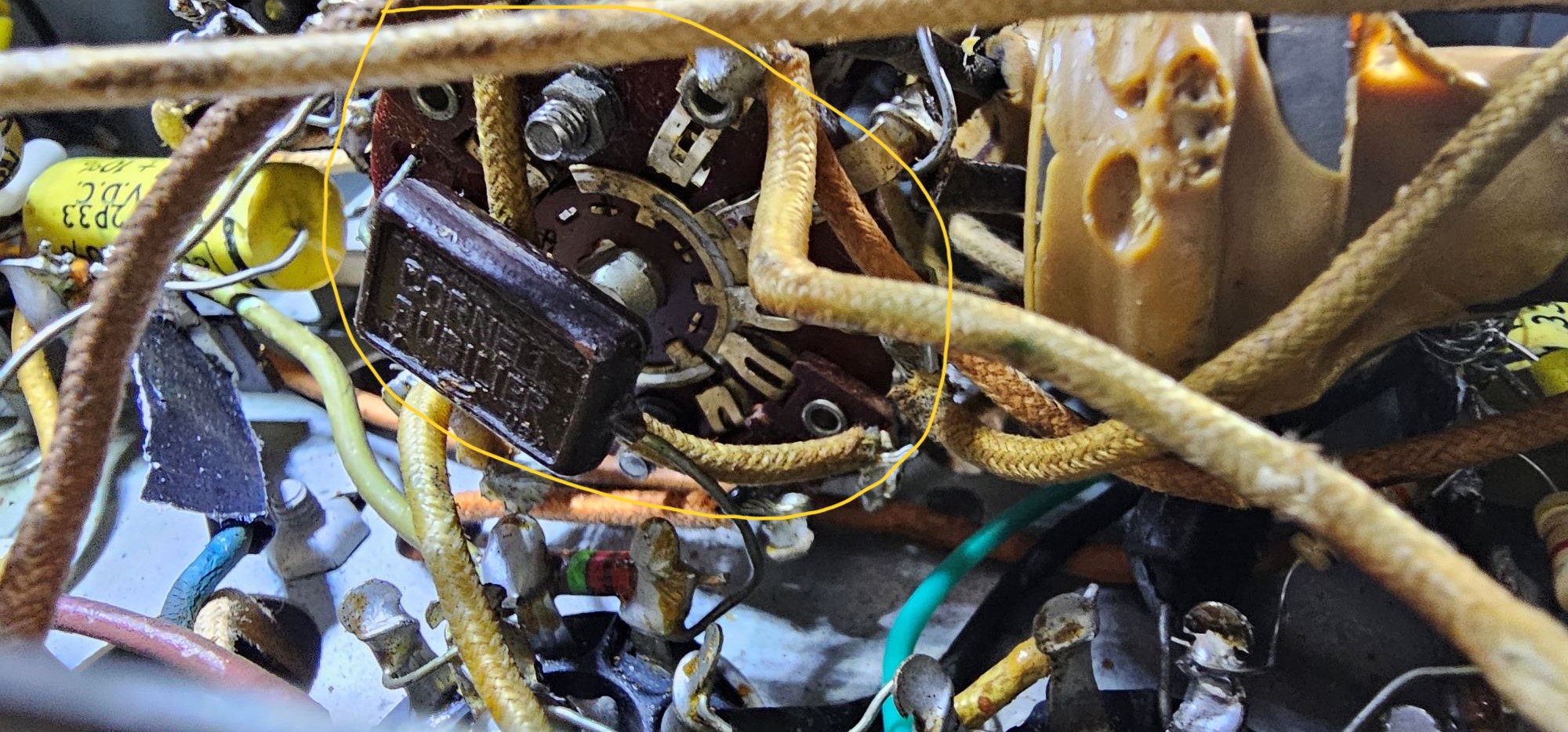

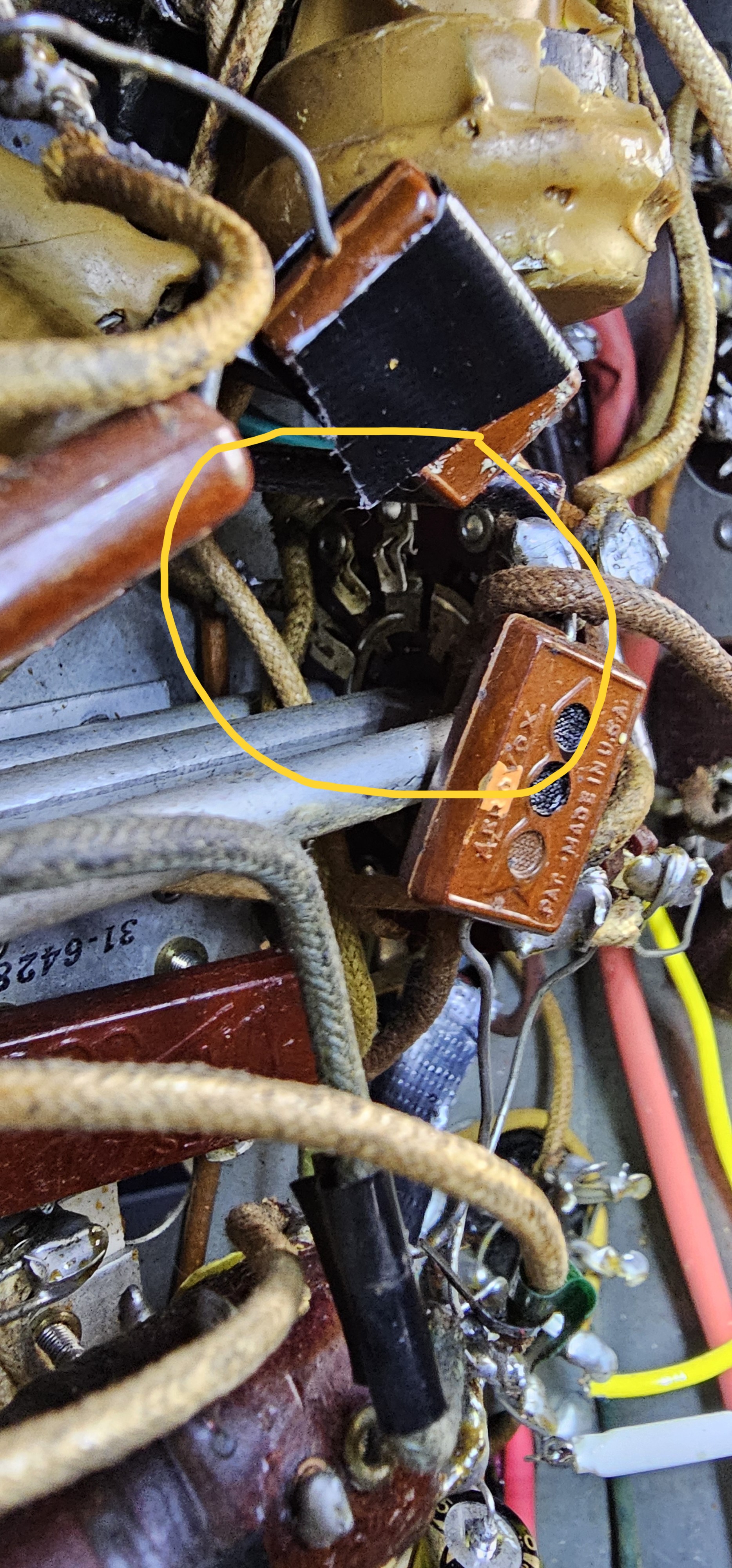

Figuring out the Oscillators on the parts listing is confusing, looking at the chassis and schematics it looks like #14 (Broadcast and SW) also 15A-B. Which would be the main Oscillator I need to check?

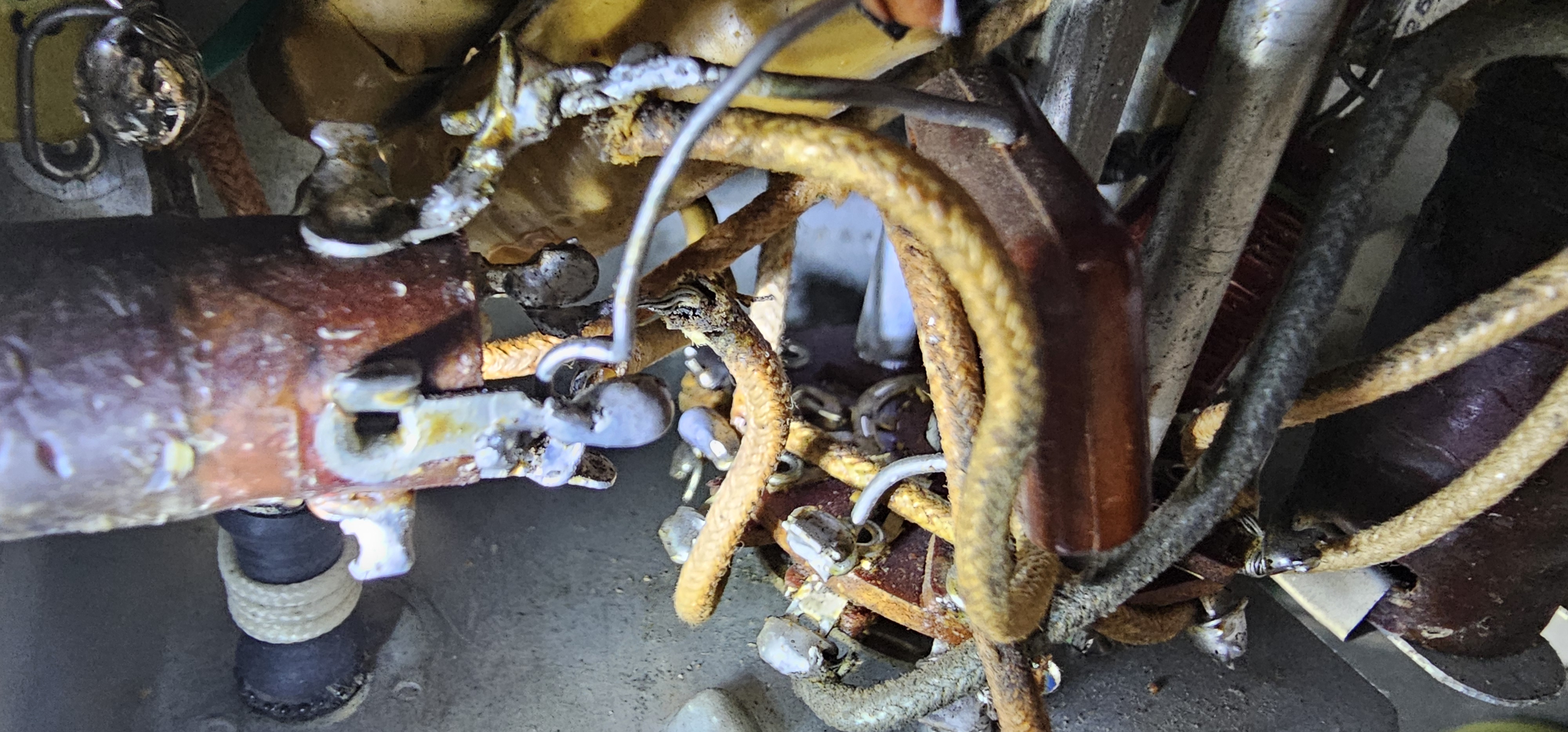

I am now checking the wiring and contacts in the Oscillator area to see if anything may have shorted. The backside of the switch/contacts (where it protrudes through the chassis) seemed to be the worst before using the DeoxIT.
