The list of my radio & TV collection!
RadioSvit
Senior Member
****
Posts: 635
Threads: 21
Joined: Nov 2014
City: Svalyava State, Province, Country: Ukraine Transkarpati
#126

07-17-2017, 04:01 AM

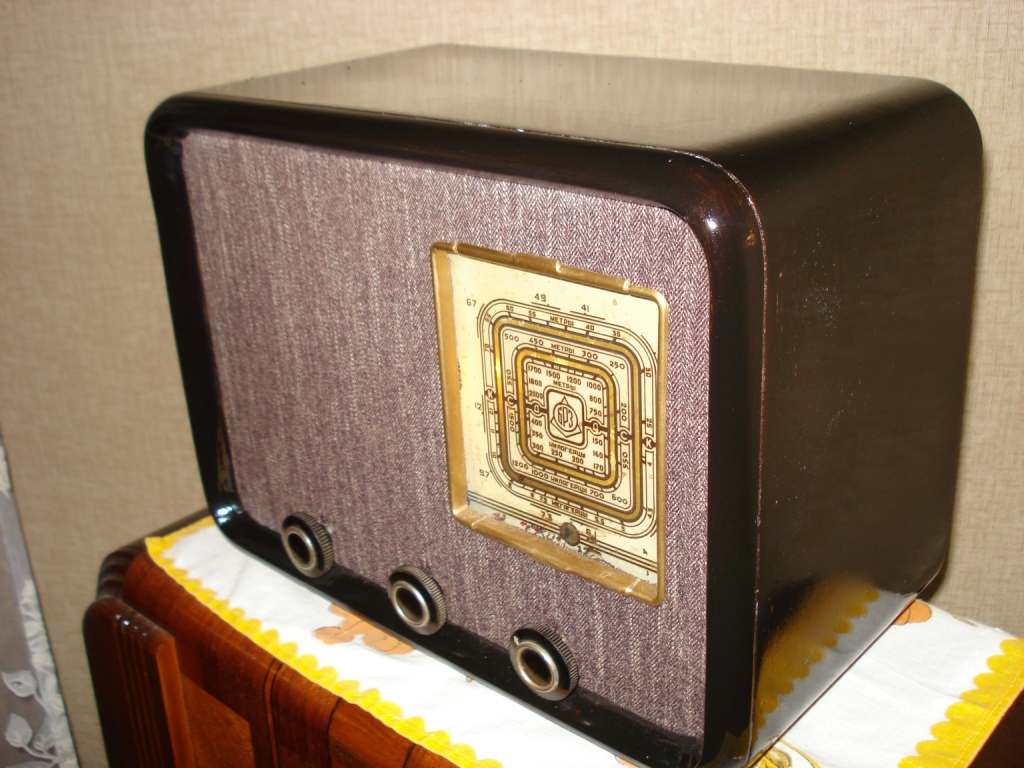

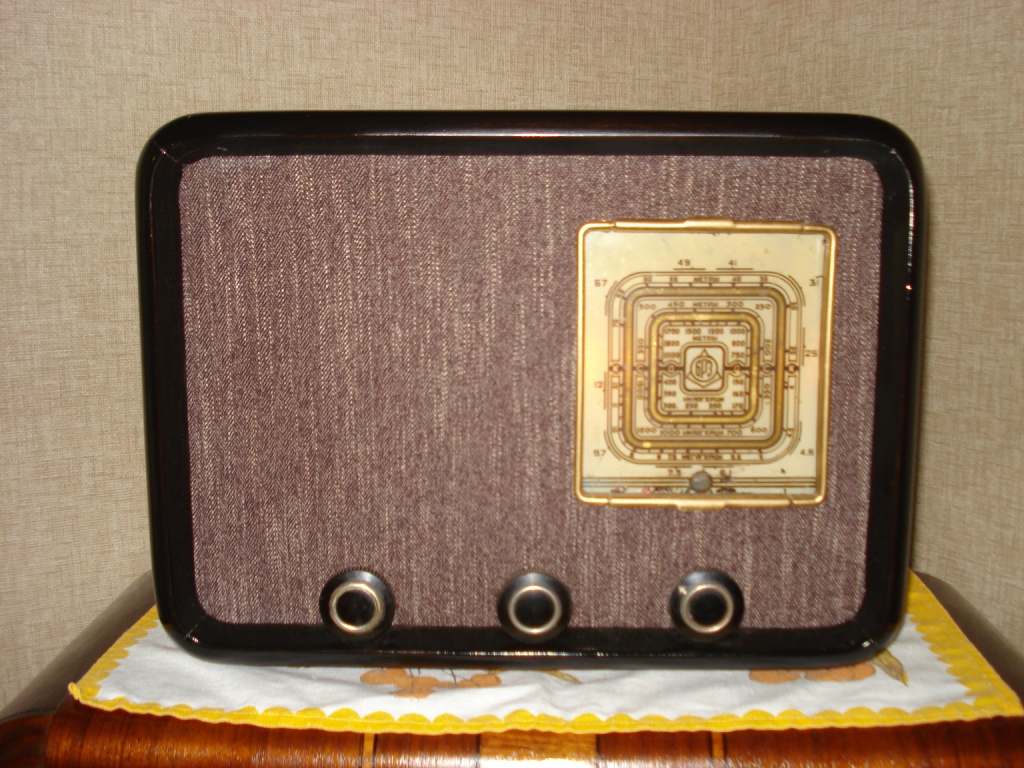

The next story about "folk" radio in the USSR will be about the model of Record 52, which was made in 1952. Unlike the previous model, Record 47, this radio was made on only 6-volt series lamps and with a transformer power supply .. This topology of the circuit for radio on 5-wire radiolamps has become dominant for almost the next decade. My new radio receiver of this series is still in restoration, and so I will show a photo of the previous Record-52, which is now owned by one of my colleagues in the United States.
Icon_wink


(This post was last modified: 07-17-2017, 04:05 AM by RadioSvit.)
