Please, drawings of console cases ...
RadioSvit
Senior Member
****
Posts: 635
Threads: 21
Joined: Nov 2014
City: Svalyava State, Province, Country: Ukraine Transkarpati
#25

11-18-2017, 12:34 PM

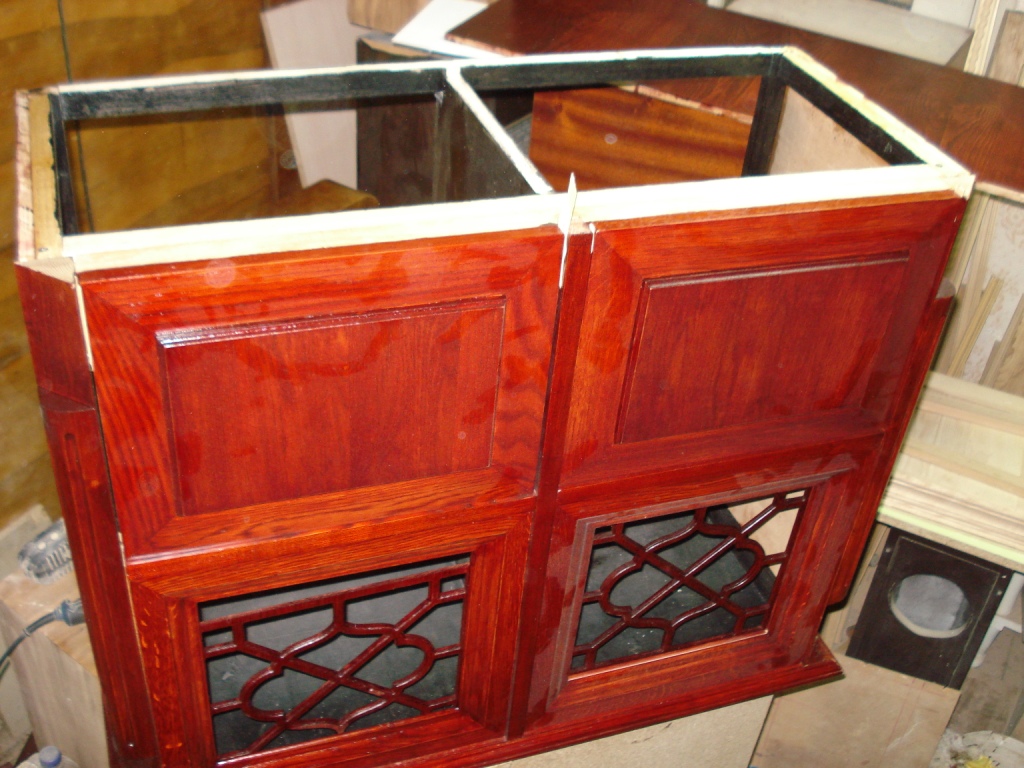

So guys, processing the top lid is not finished yet. The photo shows one of the processes of tiling and fitting of parts. At the moment, the case is already tucked under the red color of the mahogany, but I do not like the quality and the picture of the veneer. So I decided to buy a more beautiful veneer and update it.

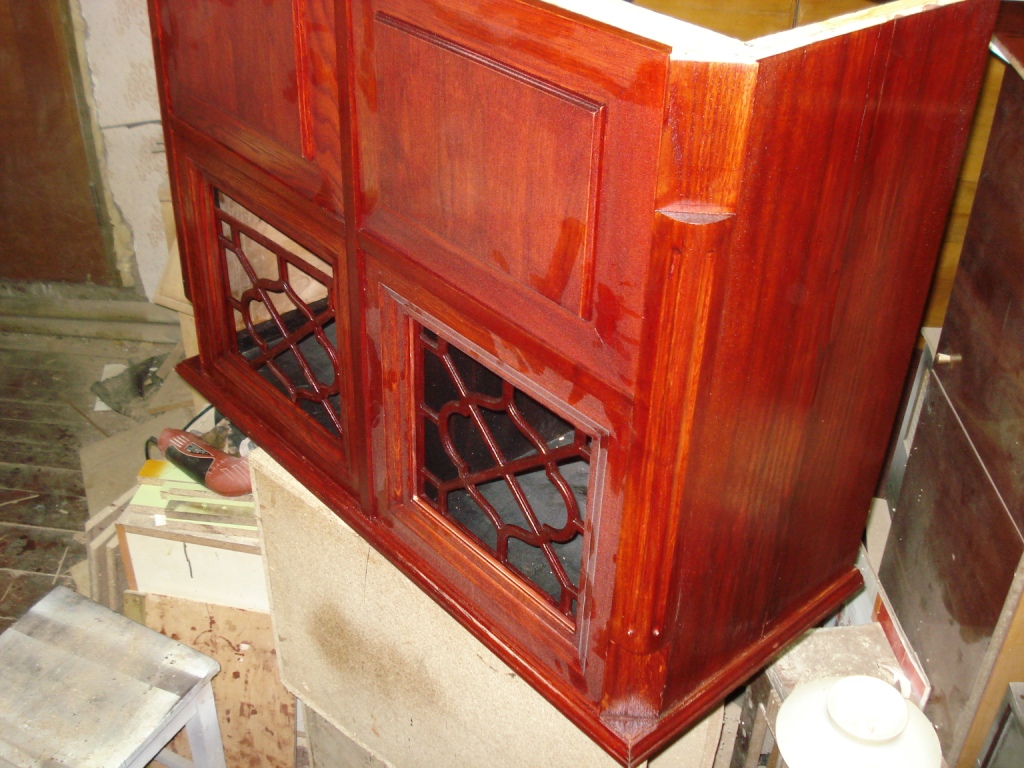

Here are some details after toning ...
