Philco 38-690 electronics restoration.
Posts: 16,582
Threads: 574
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
OK, guys,
Need help with assembly.

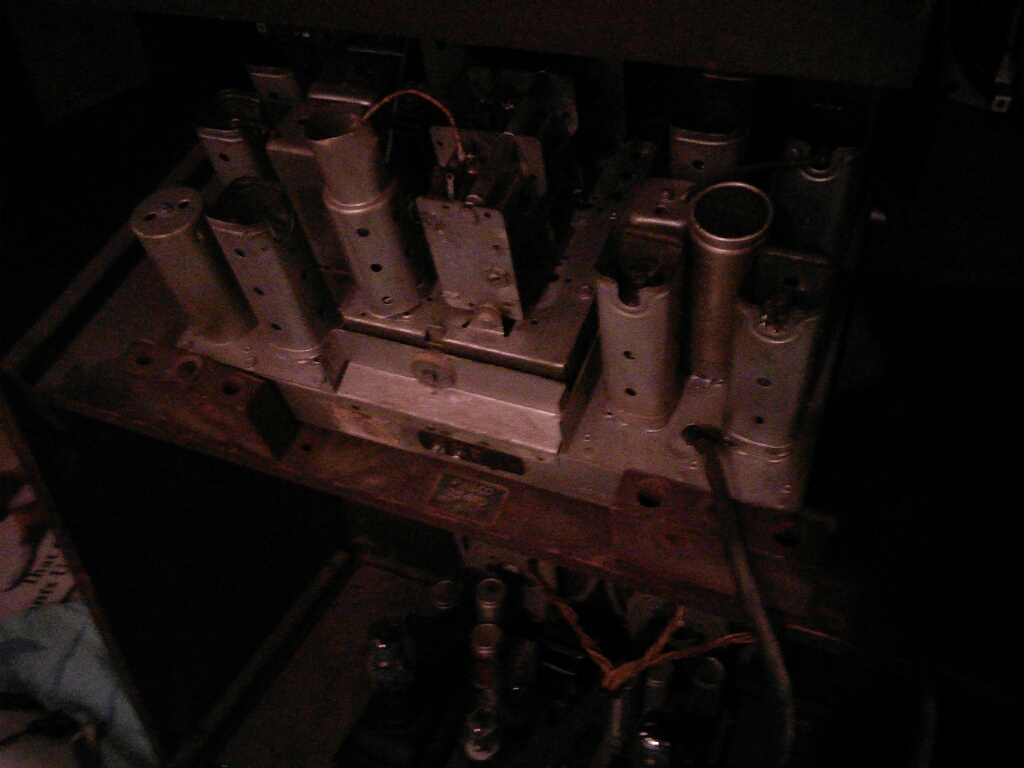

This is what I have with the tuner:

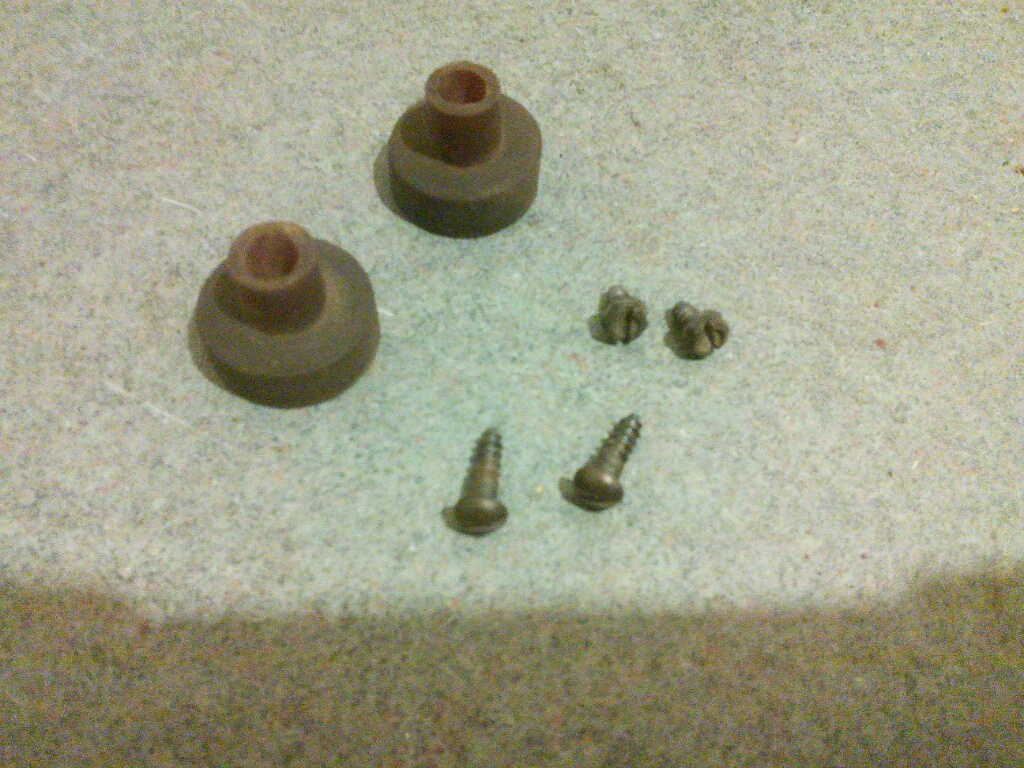

This is what's left unused:
The tuner chassis should probably be held in proper position where it is aligned with the front by something other than the shipping wooden blocks.
As I said before, the radio was partly taken apart before I came so I do not remember all the fasteners, and in the inclined models of 1938 it is different from the ones from 1937 where it is parallel to the floor and is held with one 4-40 screw.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
