Posts: 189
Threads: 22
Joined: Aug 2018
City: Kewanee
State, Province, Country: Illinois

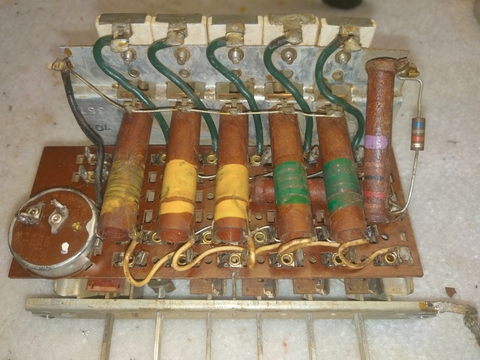

Guys not to sound stupid, but what is the big long brown component on the right (6th from the left), next to the 6800 ohm resistor? It appears to be some sort of huge resistor with the markings on it, but what number in the schematic references it? Mine measures open on my meter whatever it is. I'm trying to determine if it is bad and needs replaced.
1929 Victor R-32, 1933 60L, Phil 40-158, Phil 42-400X, Phil 47-1230 Radio/Phono,, 1950 Phil TV t-1104, Air King 4000, Philco 41-105, Philco 37-675, RCA Victor 9K2, PT-50, Phil 54C, PT-44 Cabinet, Phil 118X Cabinet
Gregg
