Philco 116B chassis restoration
Radioroslyn
Phorum Expert
*****
Posts: 7,301
Threads: 269
Joined: Dec 2009
City: Roslyn Pa
#25

11-28-2018, 08:46 PM
Sorry had pentode on the brain!

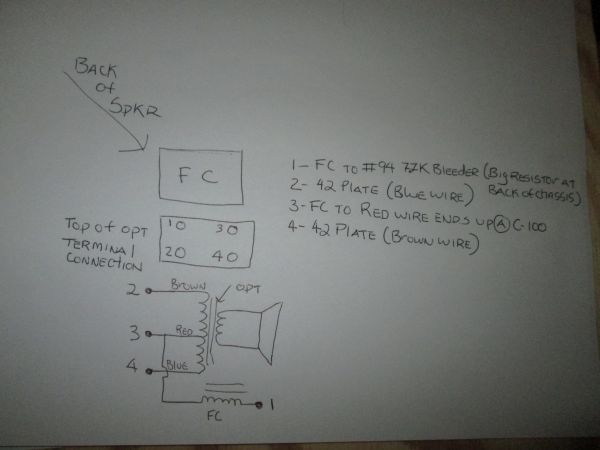

Here's a diagram of the spkr's opt termination you might find helpful.
Field coil is # 92 on the diagram no to be confused w/# 98 which is a choke in the power supply section. They look the same on the diagram.
These connection terminal numbers do not correspond to the pins of the spkr plug. Sorry wasn't thinking abt those.


Attached Files Image(s)

When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
(This post was last modified: 12-17-2019, 10:26 PM by Radioroslyn.)
