Early Auto-radio Model-N ??
KB7GP
Junior Member
**
Posts: 5
Threads: 2
Joined: Nov 2016
City: Olympia, WA USA
#1

10-20-2021, 06:31 PM

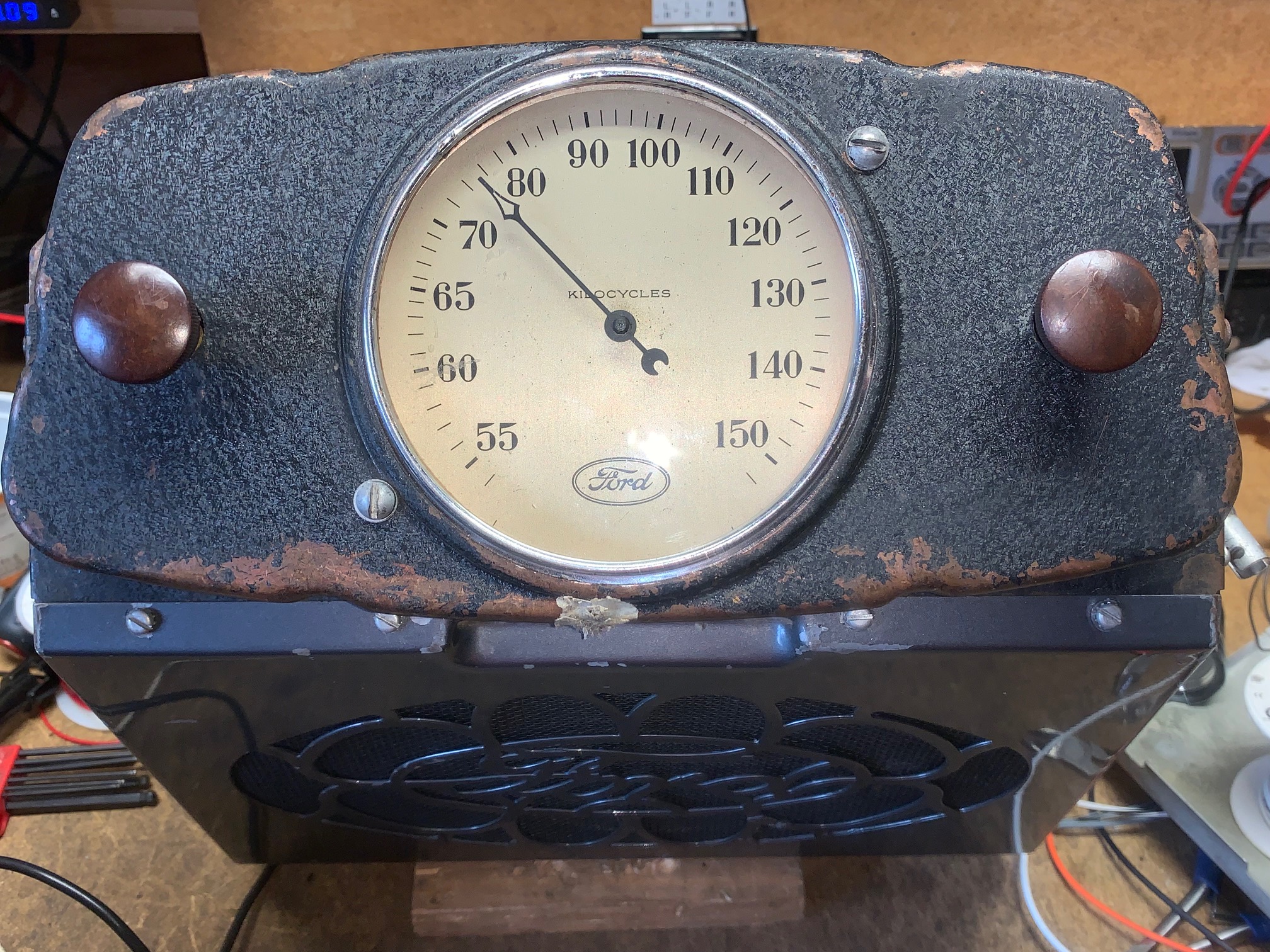

I am working on an early Ford car radio. 1933-1934. The radio has no visible identification. Web searching I was able to come up with the designation of Model-N. The photo and description provided match what I have. Also, it is identified as a Glove-box radio in my searches. I have attached a photo.

I am looking for verification of my information and I am asking for any input concerning schematics or other useful service information.

Thank you, Dave KB7GP


Attached Files Image(s)

Find
« Next Oldest | Next Newest »
Thread Closed


Messages In This Thread
Early Auto-radio Model-N ?? - by KB7GP - 10-20-2021, 06:31 PM
RE: Early Auto-radio Model-N ?? - by KB7GP - 10-20-2021, 06:42 PM
RE: Early Auto-radio Model-N ?? - by wannchev - 10-20-2021, 09:36 PM
RE: Early Auto-radio Model-N ?? - by fenbach - 10-20-2021, 10:41 PM
RE: Early Auto-radio Model-N ?? - by Antipodal - 01-17-2022, 07:24 PM
RE: Early Auto-radio Model-N ?? - by GarySP - 02-28-2022, 08:26 PM
