An Introduction and a Philco 90 issue.
cknob
Member
***
Posts: 51
Threads: 3
Joined: Nov 2021
City: Drexel Hill State, Province, Country: PA
#36

11-26-2021, 11:51 PM
Hi Steve...hope you and your family had a wonderful Thanksgiving.  Thanks for not giving up on me here!!  I'm feel pretty discouraged and I'm afraid I'm getting close to walking away  Icon_sad

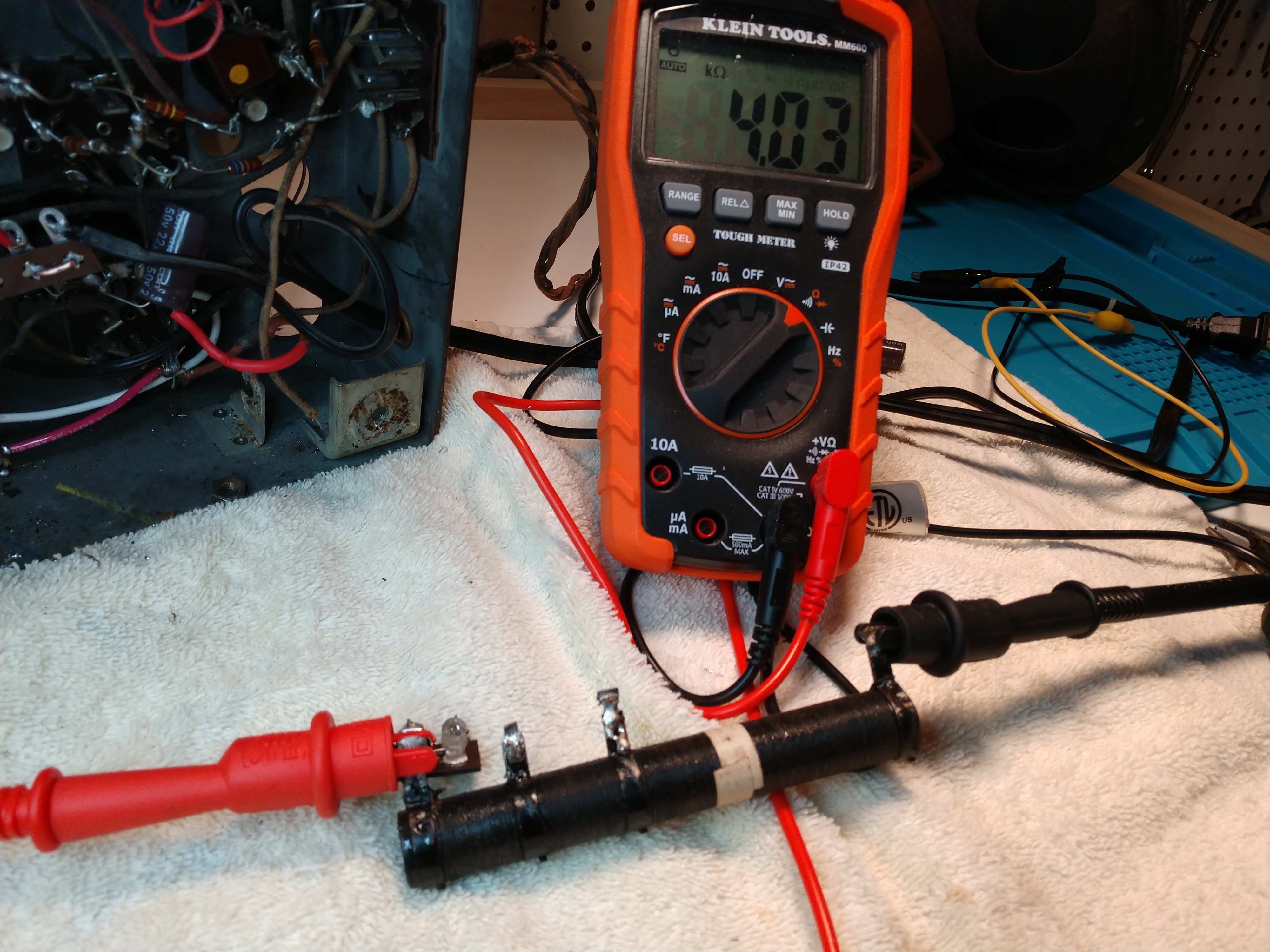

I think the resistor is fine...I took it completely out of circuit as you see below and measured it. 4k ohms from end to end.  From 1 to 2 193 ohms.  1 to 3 254 ohms.  The internal measurements make sense too.  From 2 to 3 60 ohms.  From 2 to 4 3.8k ohms.

Any suggestions as to what I should test or do next?  Thank you for your help...it's much appreciated!


Attached Files Image(s)
