Quote:I bet it is very much the same as my RCA 9K2. Mine just has a extra band. Very sensitive bandwith

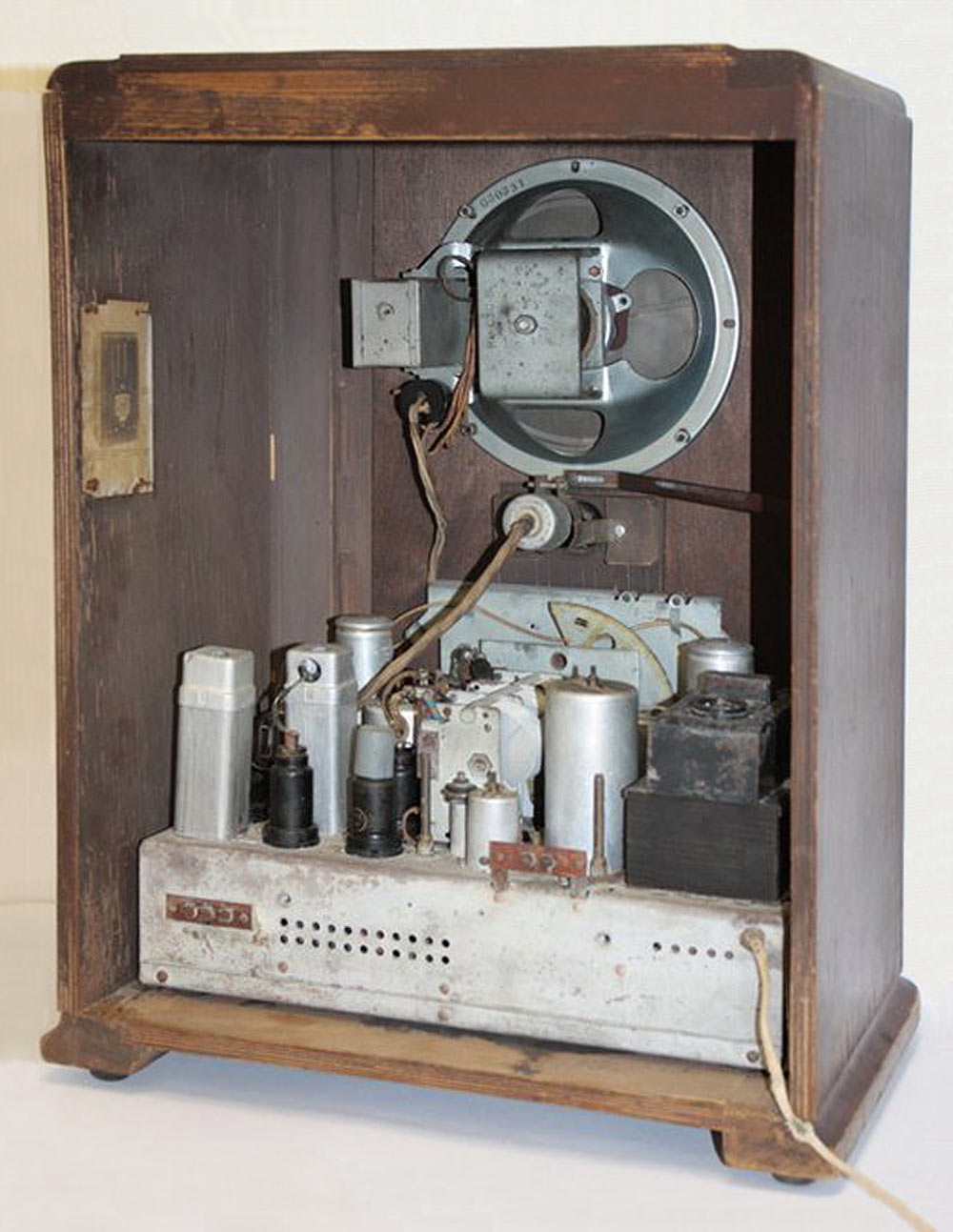

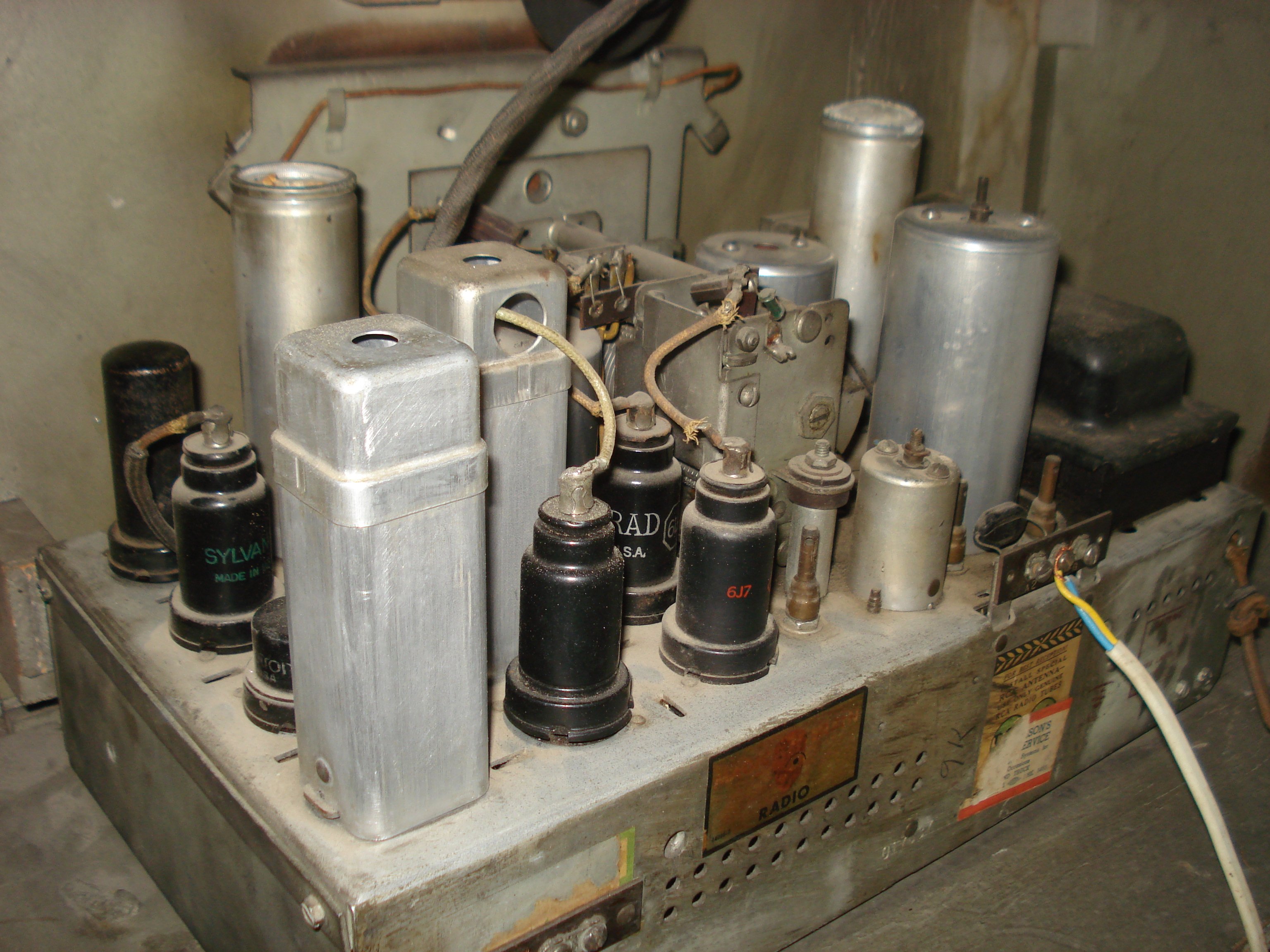

In fact, the 9K and 9K2 models have completely different chassis. The 9K has a simple single-storey chassis with an upper limit of 22 MHz, and the 9K2 has a more modern and advanced chassis with a HF subunit for reception at high frequencies up to 60 MHz and a more powerful woofer amplifier on a 6L6 radio lamp. And in the 9K model there is no "Magic Voice" ...  But even in this budget version, I really like this radio.

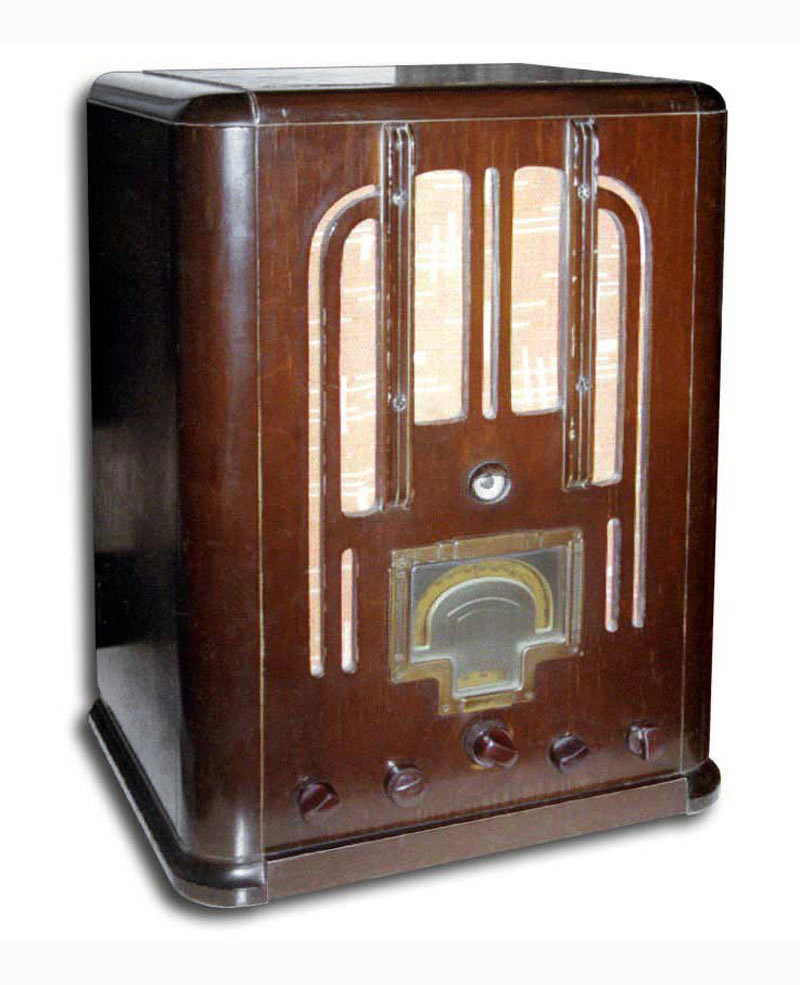

An interesting fact from history - in 1938 in the USSR under the RCA license made a desktop radio 9H4, which was a prefabricated compilation of the case from the desktop model RCA 9T and chassis from the console RCA 9K. And at that time it was the most perfect serial radio in the USSR and was produced exclusively for the state and military elite of the Soviet Union.  .
Old Tube Radio Online Museum / Музей ретро радіо
https://www.youtube.com/user/RadioSvit?d...lymer=true
Sincerely Peter
З повагою Петро
(This post was last modified: 02-12-2022, 10:54 AM by RadioSvit.)
