The Fisher 700-T Receiver
Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand
State, Province, Country: Indiana

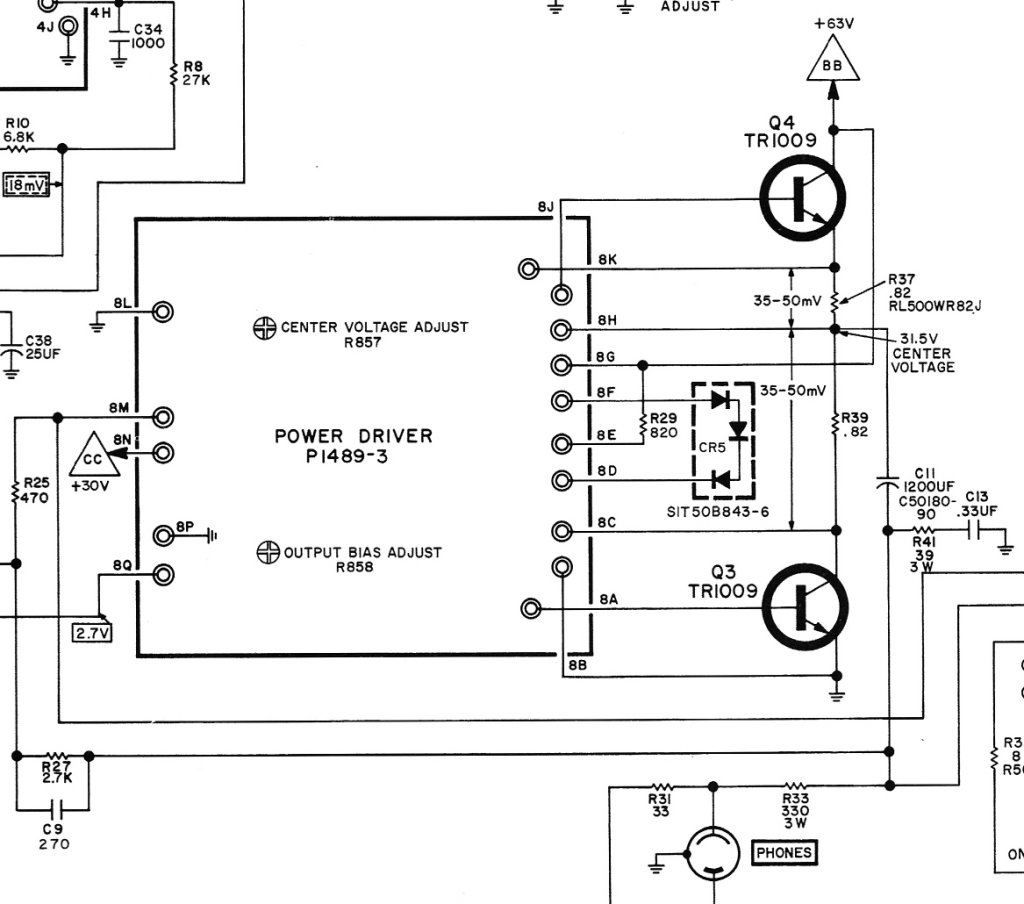

Well, Mondial, you beat me to it. But I'll go ahead and post the partial schematic of one of the output channels anyway, for the edification of anyone else interested.
[Image: http://www.philcoradio.com/images/phorum...output.jpg]
$2.85 each, eh? Well, that is less than I paid for each of the ECG162s that are, most likely, lost in the mail.
What do you suggest for a wattage value for the two 0.82 ohm resistors, R37 and R39? I still need to order these, so it's just as well that I get resistors and new transistors from Mouser at the same time.
--
Ron Ramirez
Ferdinand IN
