05-30-2014, 01:58 PM

Ok I will check that.

I think I found the schematic but not sure. It says it is for model 45
the tube line up for the radio is 6D6, 6A7, 42, 75, 80

Is this correct? http://www.nostalgiaair.org/PagesByModel...017072.pdf

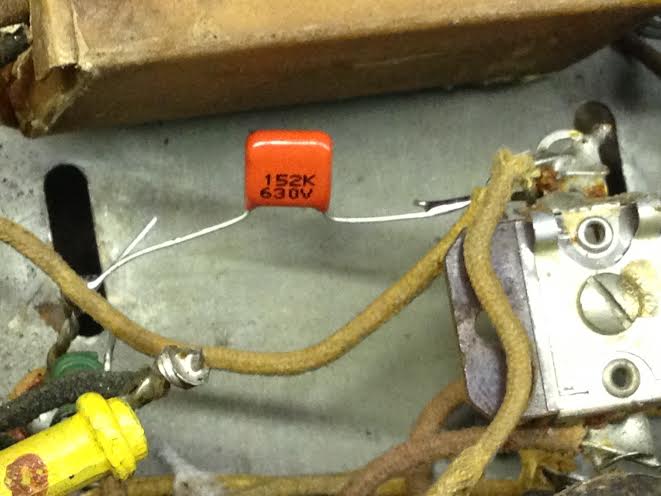

Here is a pic of the .0005. it is grounded and goes to the brown piece with the screw.

Attached Files Image(s)
