RCA 10T
#61

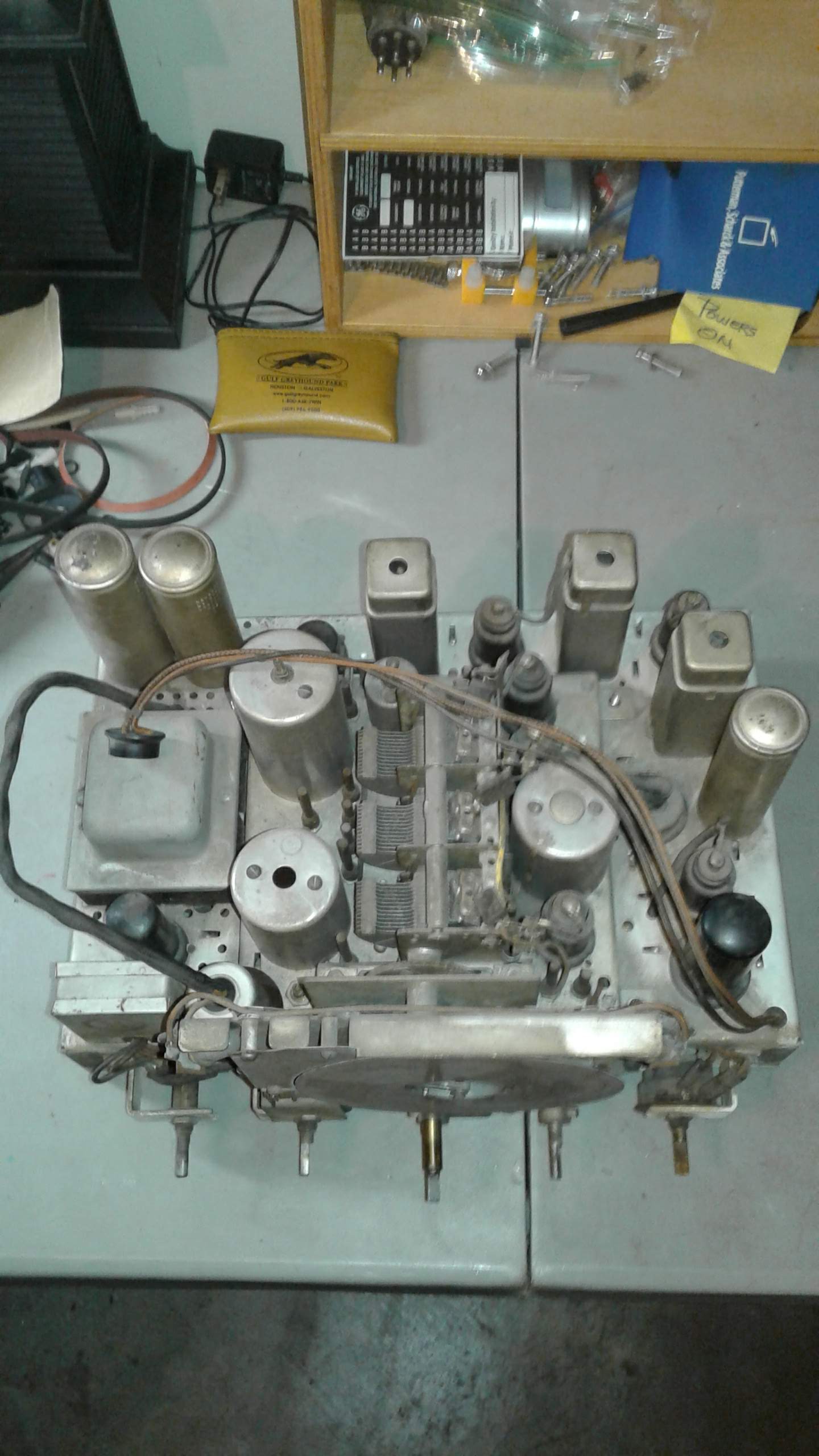

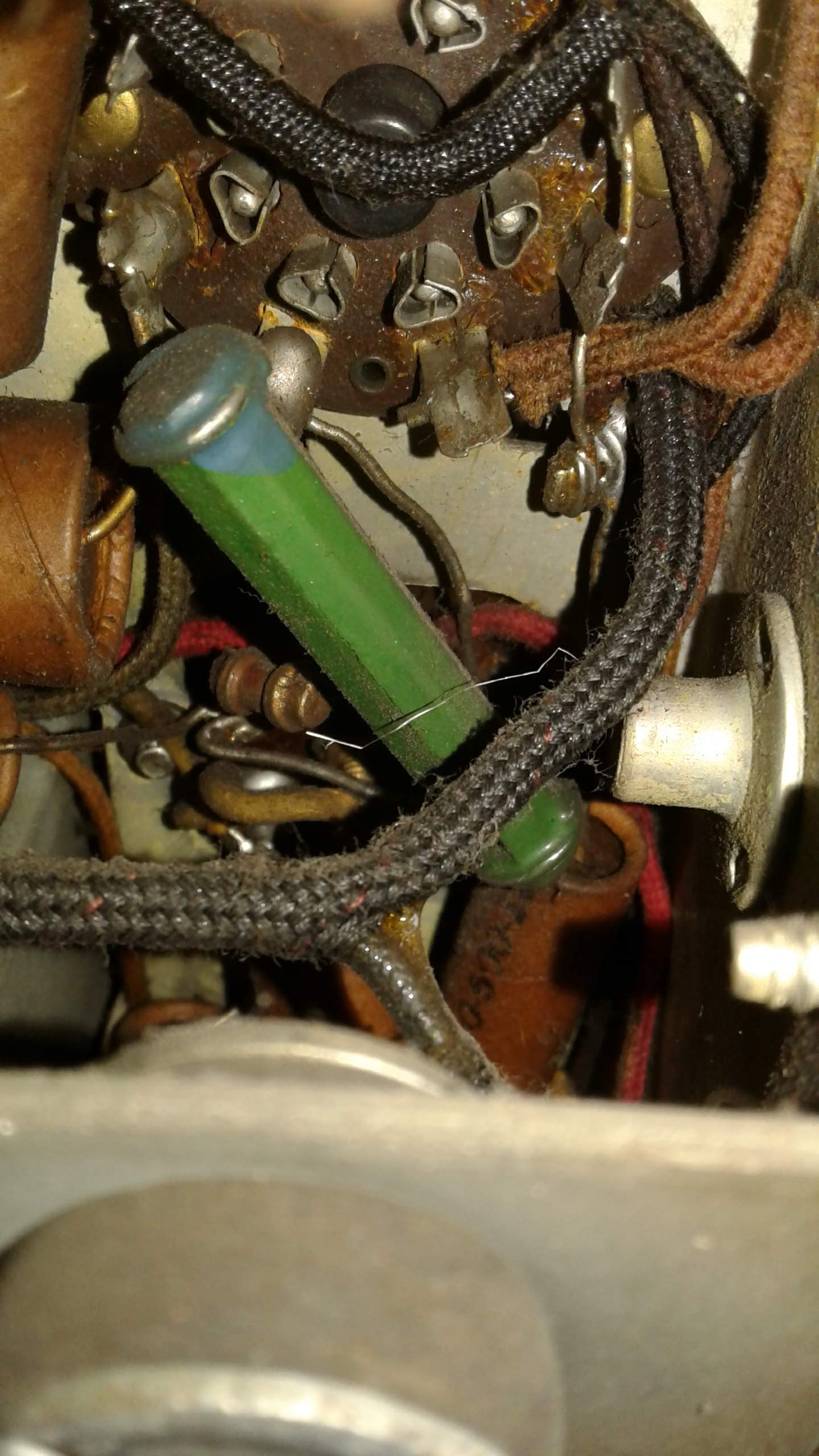

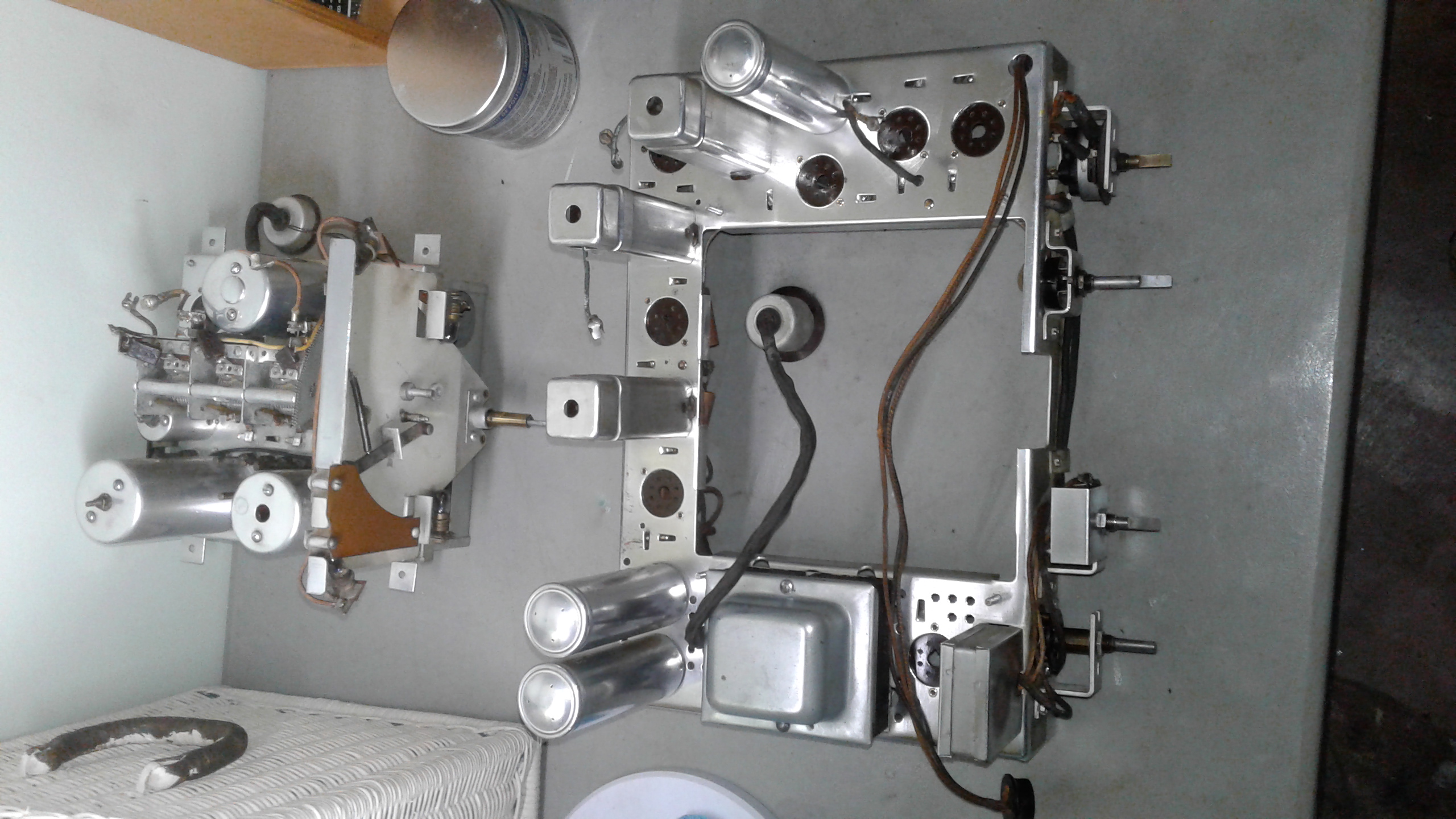

The unmolested chassis. Don't think any technician had their grubby paws underneath.
TEST:


Attached Files Image(s)

#62

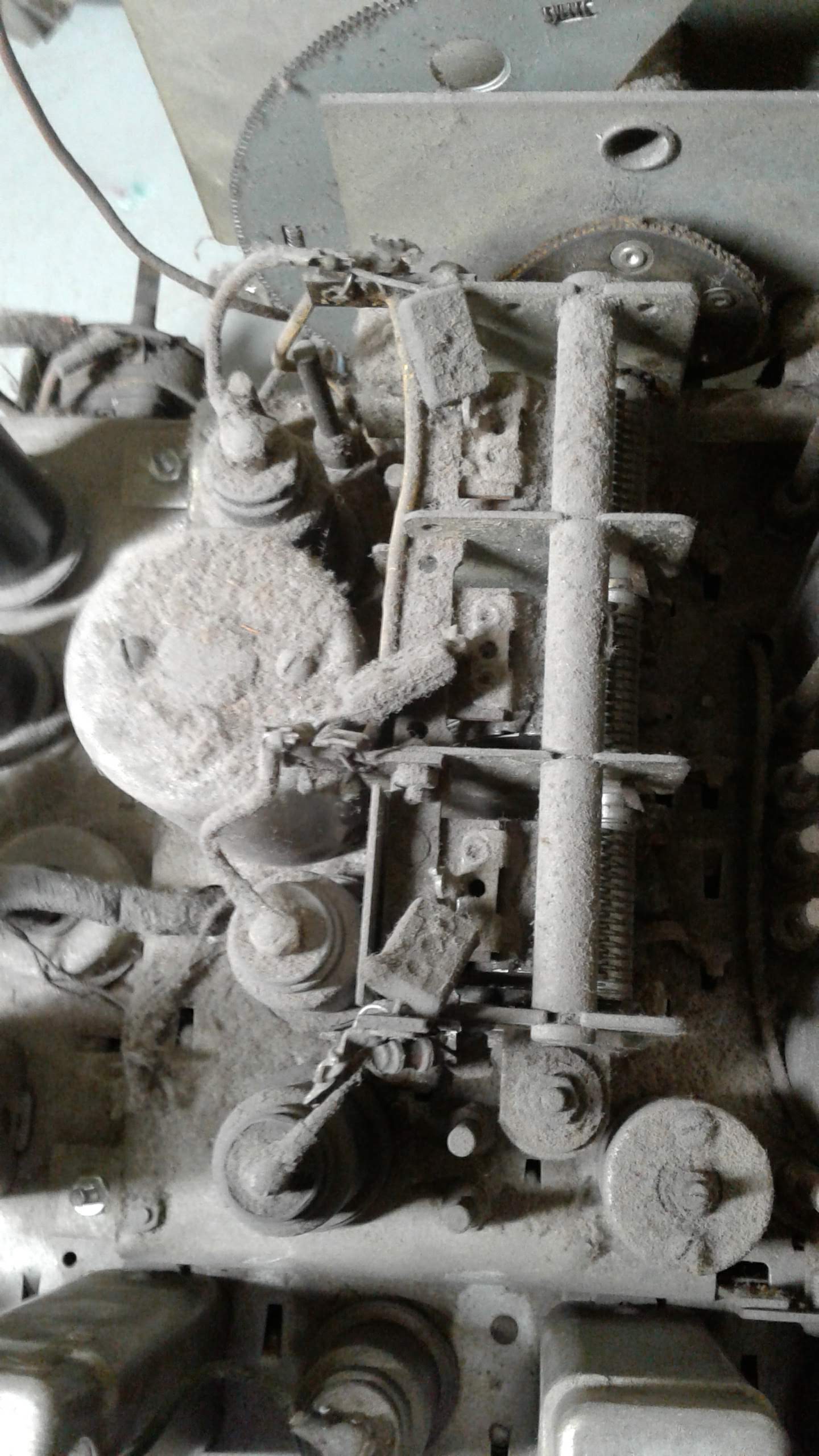

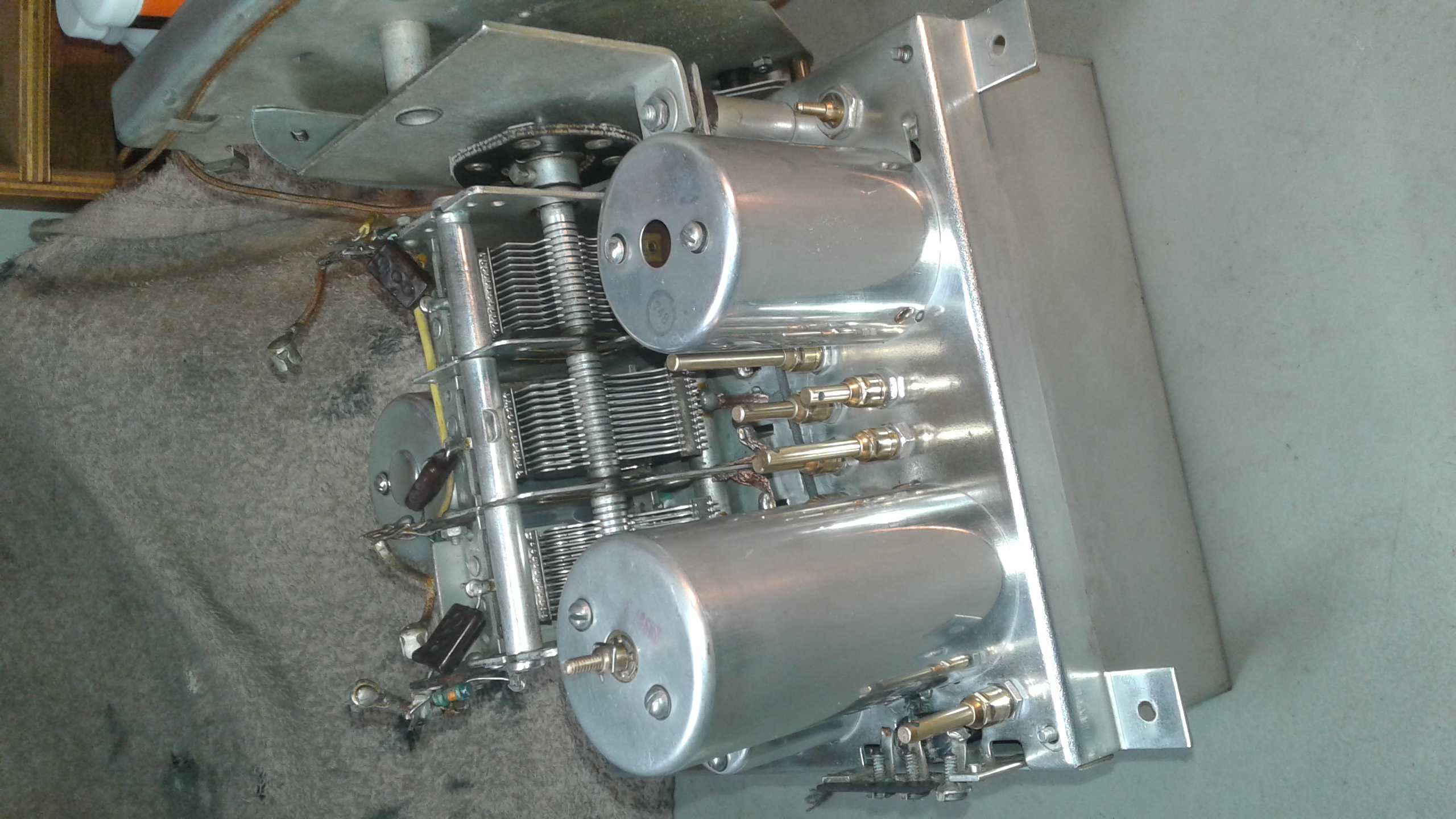

S'more stuffs for viewage:


Attached Files Image(s)

#63

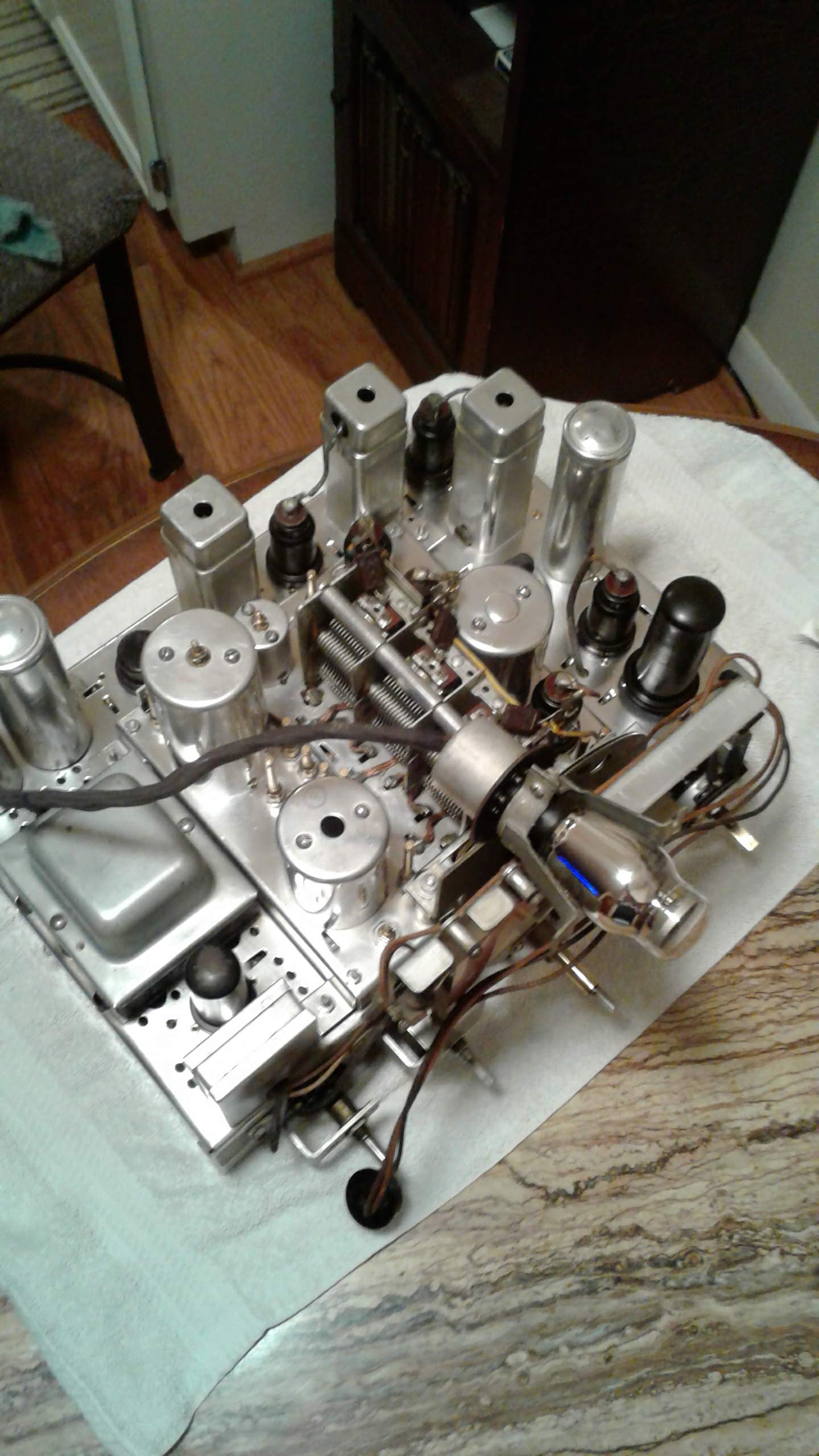

I have about 750 photos I took of its' progress in the past 7 weeks. Lol:


Attached Files Image(s)

#64

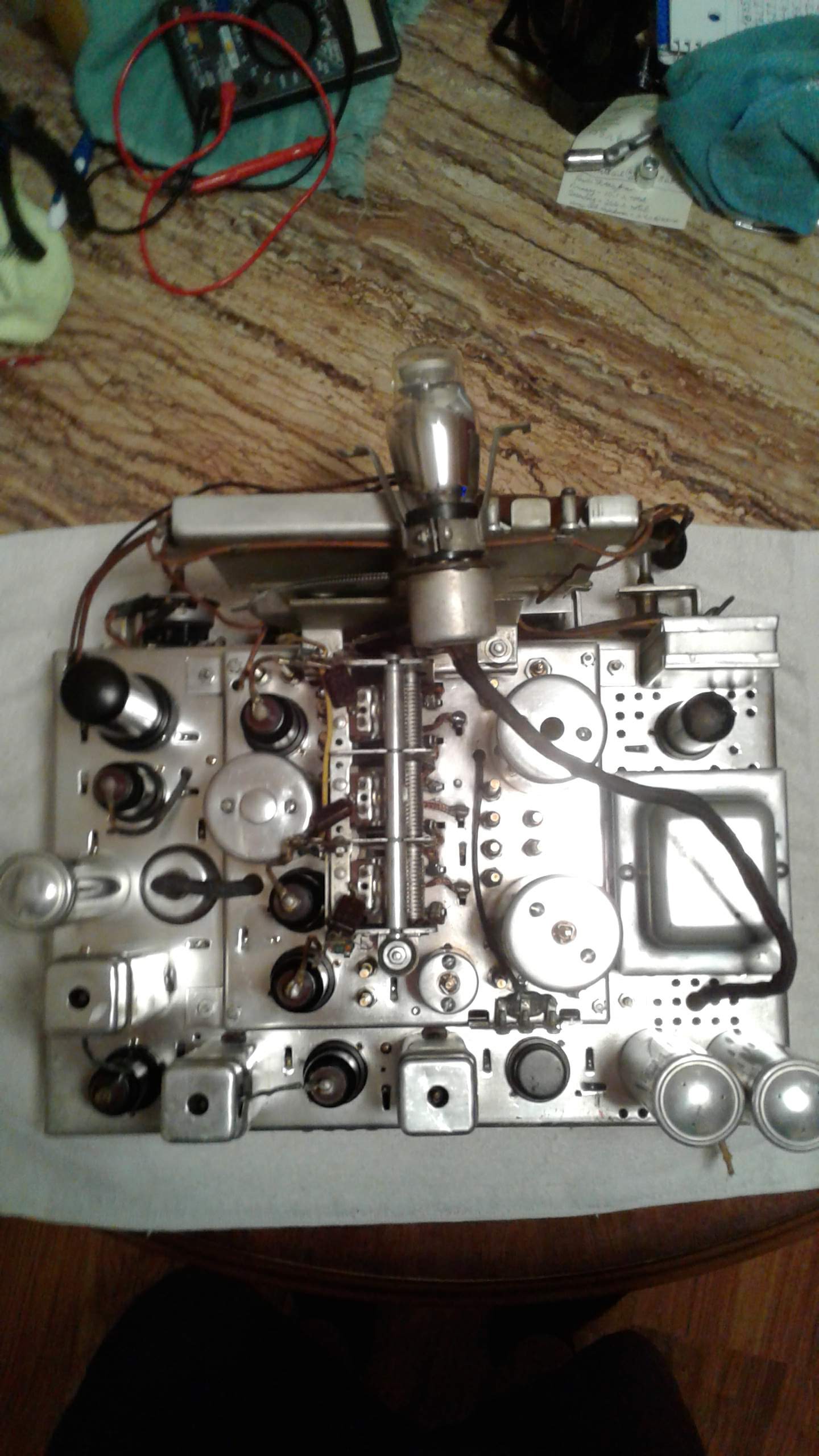

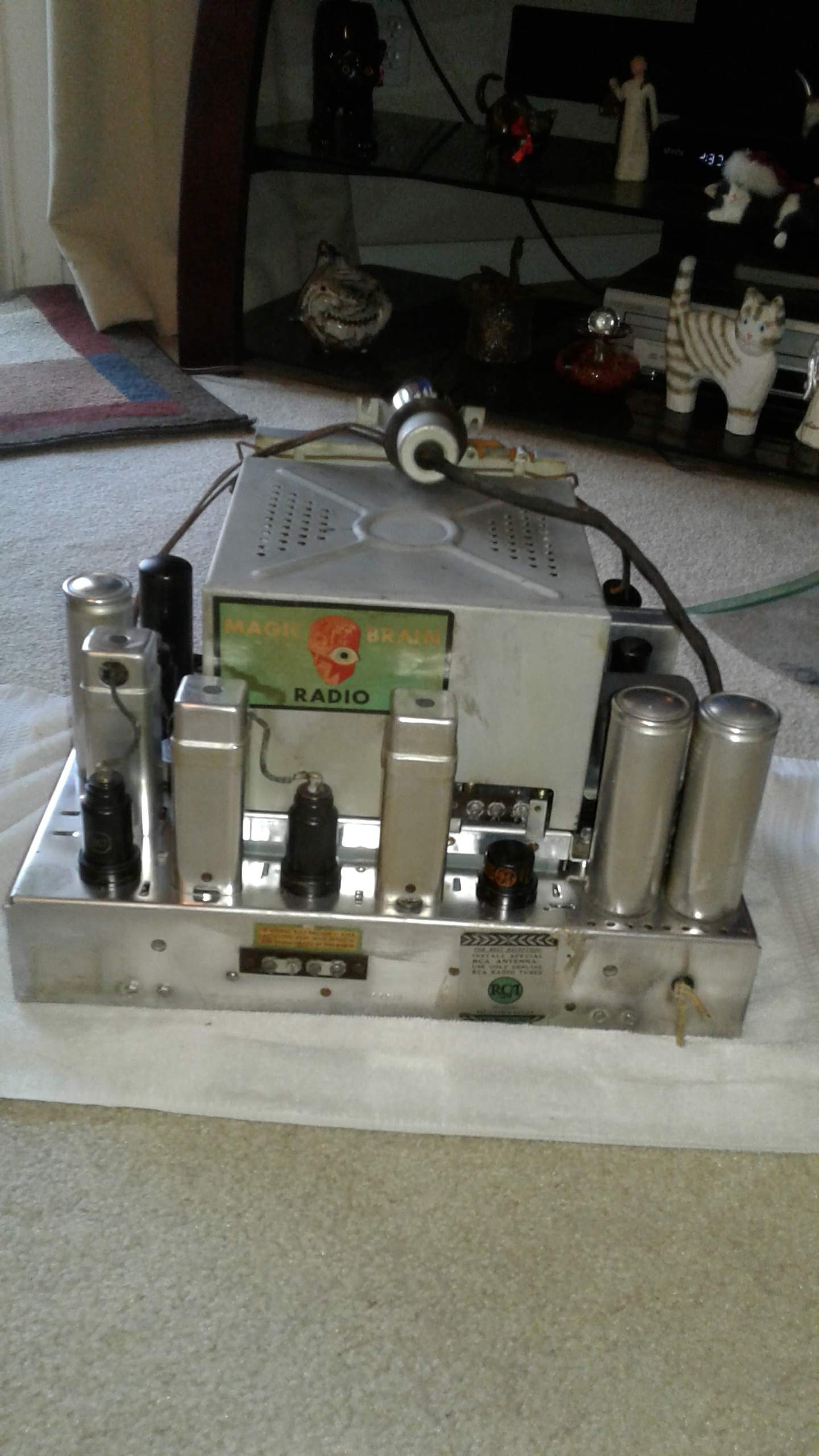

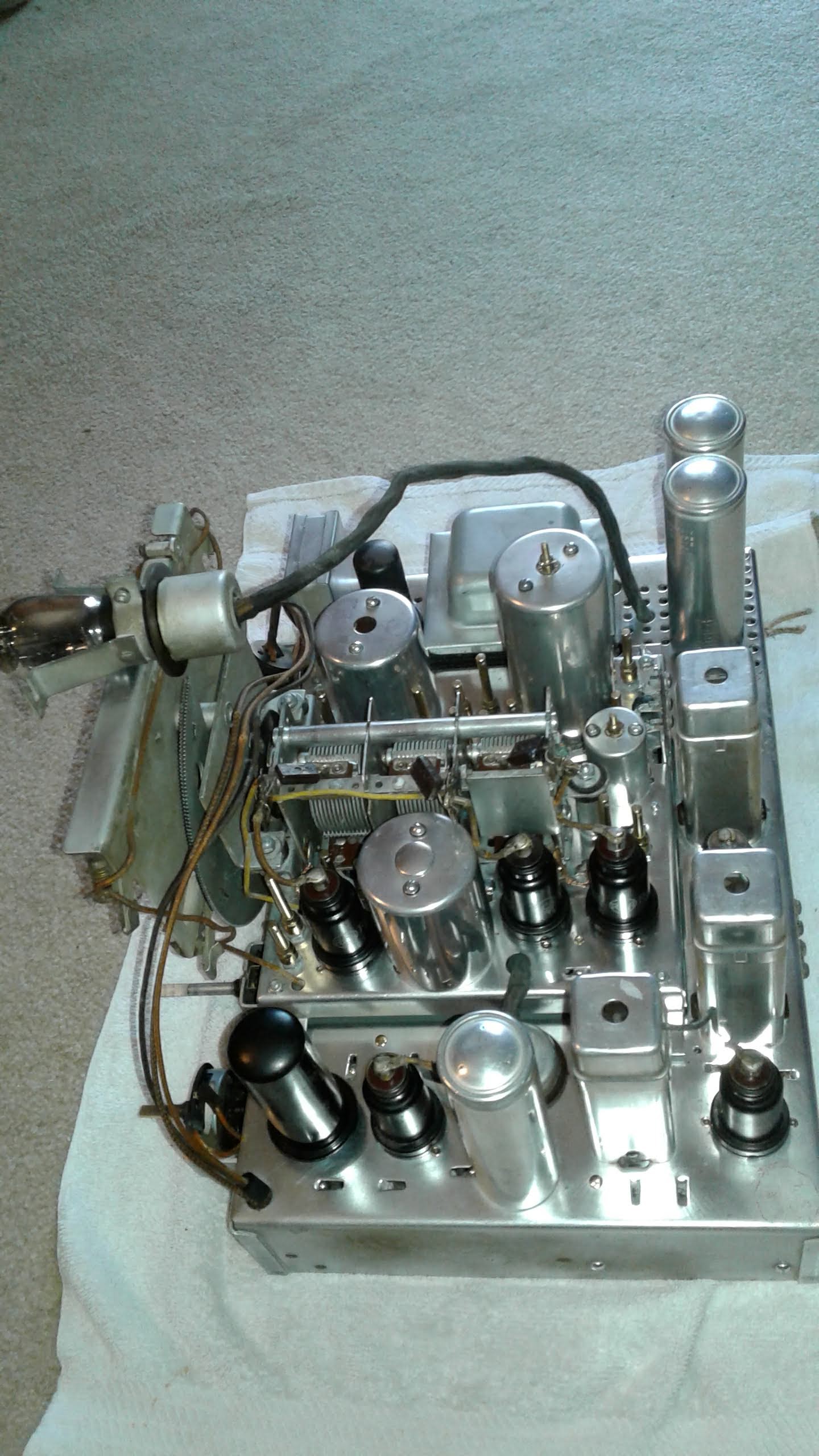

And another blast:


Attached Files Image(s)

#65

That sure cleaned/polished up pretty nice Icon_thumbup

I guess all that dust was a good protective layer for extended storage Icon_e_wink

John KK4ZLF
Lexington, KY
"illegitimis non carborundum"
#66

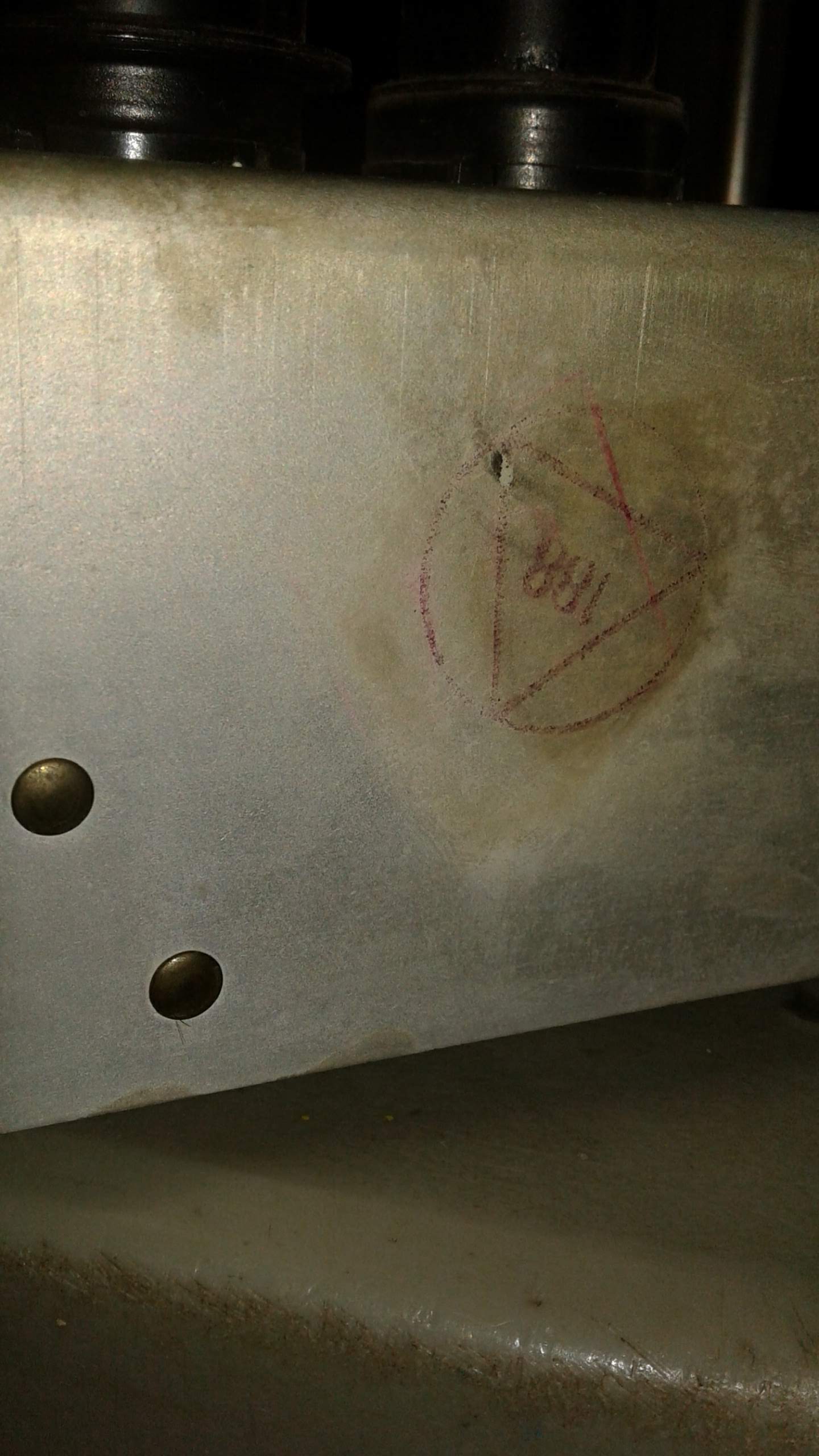

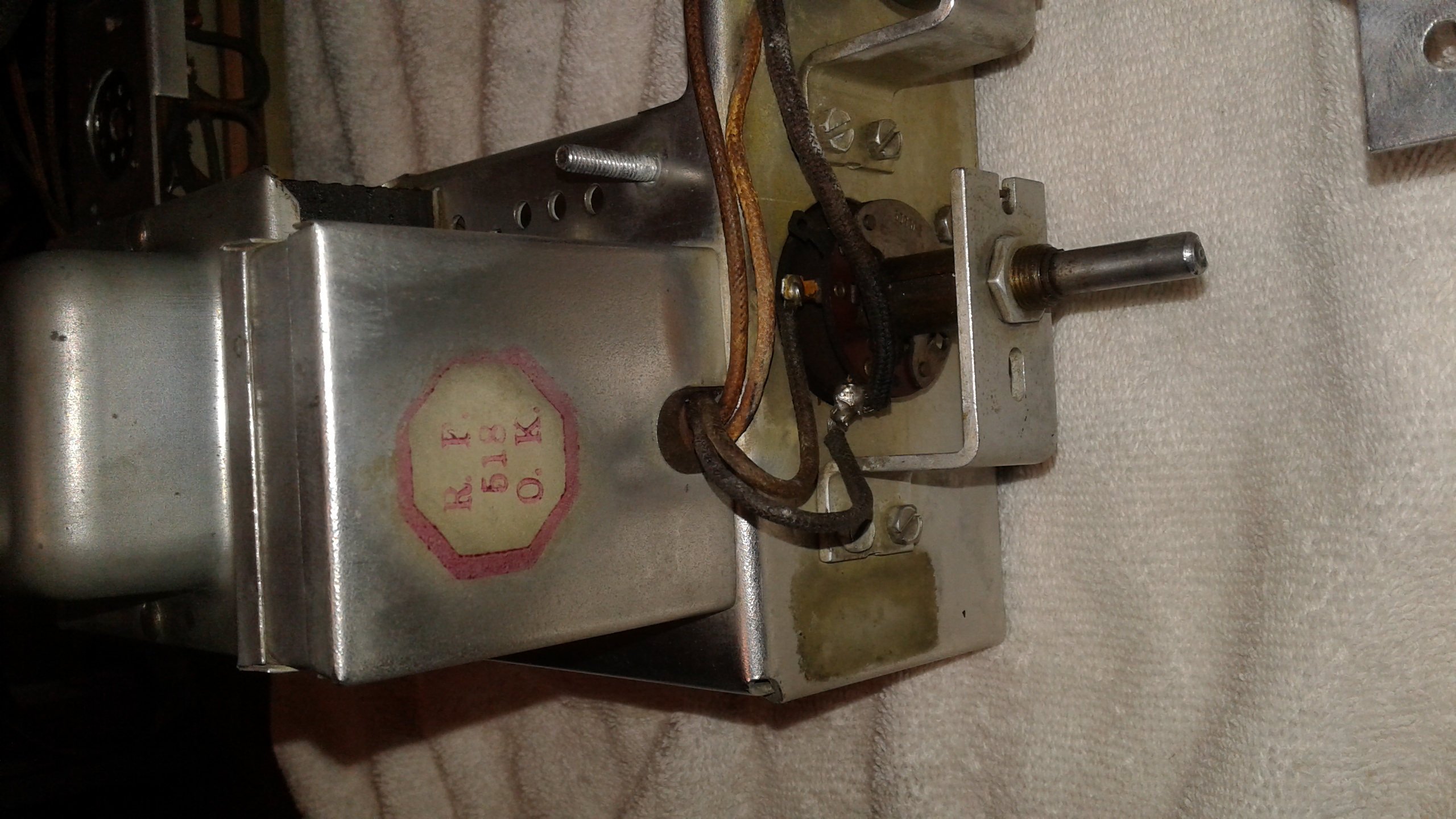

And some chassis stamps: (there are many more that were taken in the clean up,  but my eyes are going crisscross now. You get the drift)... XD


Attached Files Image(s)

#67

Thanks John!!!!! This is by far the nicest chassis I've ever laid my hands on, or even seen in person!!!!!  Icon_clap
Yes, I believe the thick layer of dust, and I assume a heavy coating of cigar/cigarette smoke contributed to the preservation of this gem of a chassis!!!!!
Funny tho. The dust layer was SUPER thick under the magical brain cover. Far heavier than what was on the power chassis!!!  Icon_eek
P.S. this was only a 60+ hour clean up, and it still really isn't quite finished yet, but it's as far as I'm going on it...
Oh, and, all switches, transformers, and everything else I checked was either spot on, or in tolerance. Icon_smile
