Wow, Jayce, great find ! It is probably going to take a ton of work to get it all sorted out, but once it is, you are going to have a sweet machine for playing 78s as well as radio listening. Do keep us posted on the progress.
Posts: 16,581
Threads: 574
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
Well.....if your speaker need repair (and as is often the case with 20 it just might) replace the cone for a modern one or at least the spider with that 45rpm type. As you will be playing records this just might improve the sound, as 20s, in all honesty, are not that great as players, and the speaker is 80% of that problem (it actually has a decent output amp, a triode PushPull).
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 14
Threads: 4
Joined: Sep 2013
City: Sainte-Foy, QC, Canada
Posts: 201
Threads: 26
Joined: Dec 2005
City: Morris Plains, NJ
I love that deco veneer!
Pete AI2V
Posts: 1,470
Threads: 97
Joined: Jul 2012
City: Poughkeepsie, N.Y.
Your right its a cute set!
Posts: 16,581
Threads: 574
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
Veneer is the exact same as on 20 Lowboy. Looks nice.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 2,353
Threads: 92
Joined: May 2010
City: Clayton, NC
Nice find, Jay! That is the first "real" one I have ever seen!
Posts: 16,581
Threads: 574
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
Quite possibly, the last.
Somehow I suspect they did not produce superb sound due to the 20 speaker's spider, and then people did not keep them. Plus the fact that the qty built was not large - 11,500.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Posts: 2,353
Threads: 92
Joined: May 2010
City: Clayton, NC
Definitely agree with you about the model 20's spreaker! Compare a model 70/90 speaker with the 20, assuming the appropriate output transformer is used, and you will see what I mean!
Posts: 16,581
Threads: 574
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
Well, I did see the difference at some point, but I no longer have any 20 with the original spider, or even the cone.
The 1st ever 20 I restored (1931 version lowboy) had no cone whatsoever. So all new cone and spider were added.
The Deluxe had a good cone but then it had bad field. While changing the field coil, Dee from Alabama Society was not able to save the cone (it was brittle) so he fully re-coned it having added a 45rpm spider.
The rest of the radios with K speakers I have are a 70 and a 90 which have 45rpm type.
So I cannot compare
Does the one you gave me have an original cone/spider or is it also a replacement?
the saddest thing about the 20's output is it is a highly regarded Triode (71A) output that can play QUITE nice (and unlike tetrodes/pentodes has very low THD with only even harmonics plus it is a push-pull). But all that gets nullified with the speaker.
Also, this size cabiet can fully accept H-type speaker and 71A output and the transformer are a good match.
People who do not drink, do not smoke, do not eat red meat will one day feel really stupid lying there and dying from nothing.
Users browsing this thread:
|
|
Recent Posts
|
|
Restoration of the Canadian General Electric A-87
|
| Thanks for your help Michael. In fact, this video is only an intermediate result. Later I had to apply another tinting l...RadioSvit — 09:01 AM |
|
Restoration of the Canadian General Electric A-87
|
| Great job on the cabinet.
PS. In the US notation, "kenotron" refers to specific type of tubes; we call re...morzh — 08:24 AM |
|
Part numbers to model cross
|
|
This document has at least some tables of models and parts used.
Example: Choke 32-7572, used in 604 radio.
Search f...morzh — 08:19 AM |
|
Restoration of the Canadian General Electric A-87
|
| I also checked all the radio tubes on my Hickok 530 tube tester. The 5Z3 kenotron turned out to be faulty, all the other...RadioSvit — 08:02 AM |
|
Restoration of the Canadian General Electric A-87
|
|
Well... While the varnish is drying up, I started repairing the chassis...
Of course I started by replacing the pa...RadioSvit — 07:12 AM |
|
Philco Model 38-7: what caps & resistors do fail typically?
|
| Hello Martin,
Welcome aboard our little community what great Model 38-7
Sincerely Richardradiorich — 12:30 AM |
|
Philco Model 38-7: what caps & resistors do fail typically?
|
| Welcome to the Phorum Martin.
I count about 9 paper caps, the 3 electrolytic caps and 2-Y2 safety caps to replace th...RodB — 09:44 PM |
|
Part numbers to model cross
|
| Jim,
We have this index put together by Dale Cook but I don't think that is quite what you are looking for.
The Parts...klondike98 — 09:37 PM |
|
Philco Model 38-7: what caps & resistors do fail typically?
|
| Yep the dim bulb test is OK but I'd definitely replace all those electrolytics before I did it. Since those #47 conden...klondike98 — 09:18 PM |
|
Philco 42-345 Restoration/Repair
|
| The resistor is a 2.2 Meg, it was the last one I hadn't replaced. The broadcast is coming in after replacing it.osanders0311 — 09:09 PM |
|
Who's Online
|
| There are currently no members online. |
|

|

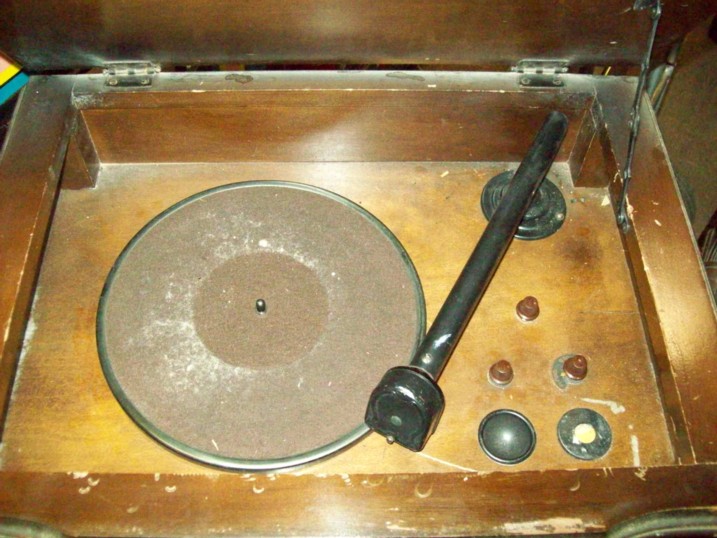

The console looks complete although there are a few issues. For one, almost every part of the phonograph was loose and it appears the chassis has seen a rebuild in the past (probably late 40's) as the on-off switch has been replaced (hence the incorrect knob. I will need to file a flat spot on the shaft for the correct knob.), and the wires for the tone arm had been cut and then spliced back together. The phonograph motor was stiff, but while doing the transformer test (which it passed), I managed to get the motor lubricated up and it now works fine. I will need to replace the rubber motor mounts and the rubber washer the turntable originally rode on. I brought the console up slow, but didn't get any audio out of the speaker. Oh, two of the caps on the 24's snapped right off when I tryed to gently pull the grid connectors off. Pheh...
