Philco 53-706 restoration Chronicles
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#1

08-13-2014, 01:41 PM

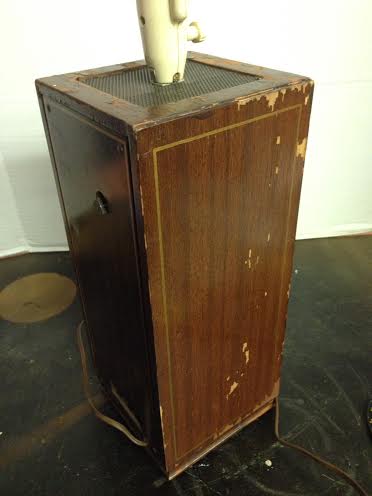

I have finally had time to work on my Philco 53-706 lamp radio.

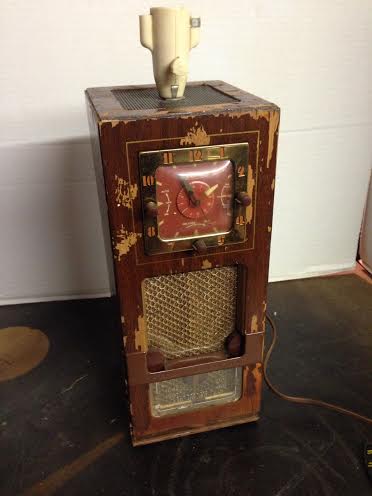

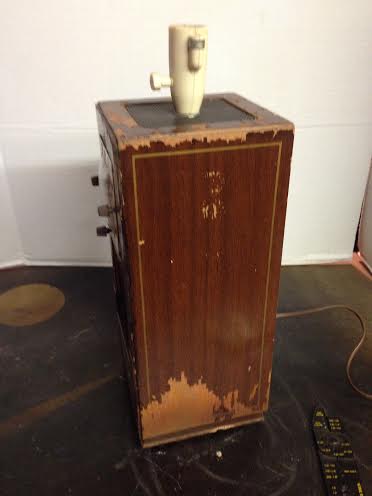

Here she is:


Attached Files Image(s)

Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#2

08-13-2014, 01:43 PM

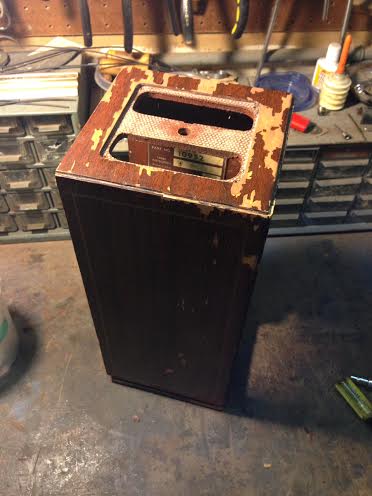

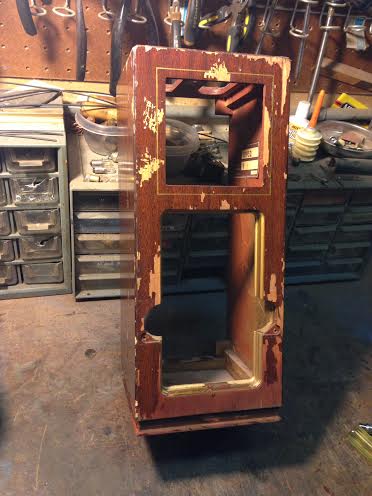

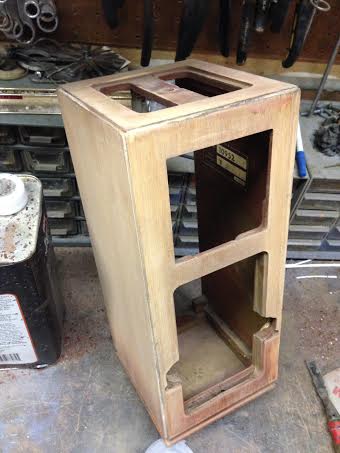

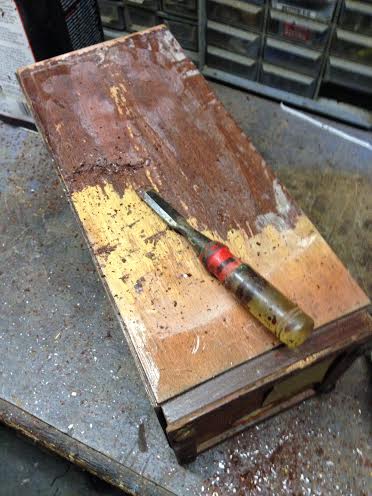

I took apart the cabinet and began by stripping off the old Photo-finish


Attached Files Image(s)

Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#3

08-13-2014, 01:46 PM

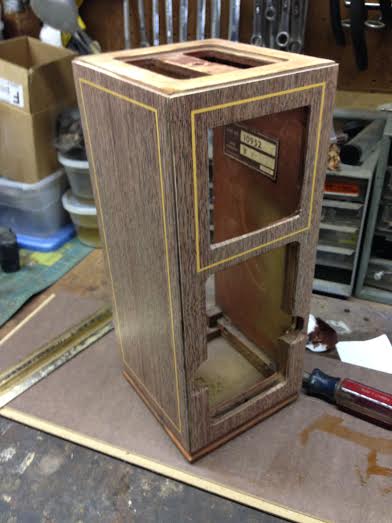

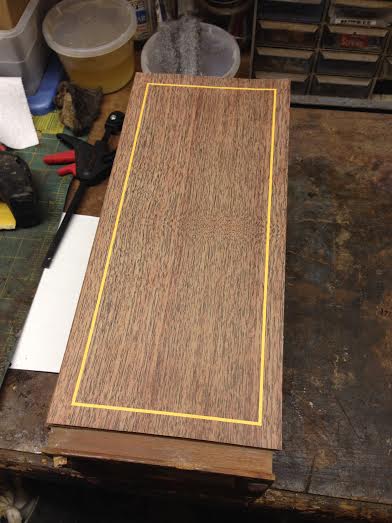

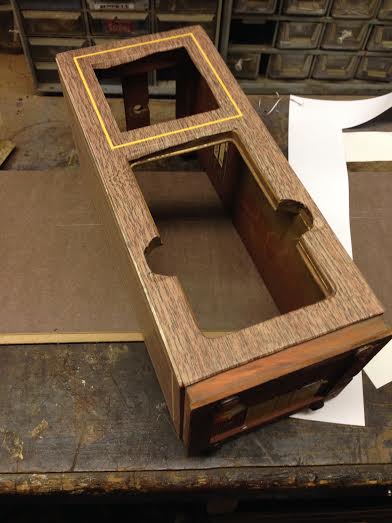

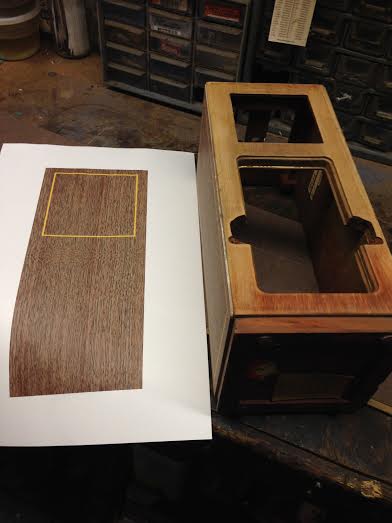

I began reconstructing the finish by getting a full scan of some high detail veneer. Then I used Photoshop to add the gold lines. It took a lot of measuring but I finally got it right.

I took the new finish and glued it on with tacky glue, rolled out the bubbles and let it dry.

Tomorrow I will stain the new finish to match the back panel and add the top photo-finish.


Attached Files Image(s)

Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
(This post was last modified: 08-13-2014, 01:48 PM by OldRestorer.)
Find
Steve Davis
Phorum Expert
*****
Posts: 1,411
Threads: 72
Joined: Oct 2007
City: Linn Creek, MO
#4

08-13-2014, 02:19 PM
Kirk, you amaze meIcon_thumbupIcon_thumbupIcon_thumbup

Steve
M R Radios   C M Tubes
Find
Phlogiston
Radio-Fixer-Upper
*****
Posts: 2,118
Threads: 112
Joined: Jun 2010
City: Medford OR (OR what?)
#5

08-13-2014, 02:56 PM
Kirk, That is good. You can tone it a little red(er).

You should post the artwork for others that have similar radios. If you do, Post the DPI so that it can be sized properly without having to figure it out. I don't have one but I'm sure that someone does.
"I just might turn into smoke, but I feel fine"
http://www.russoldradios.com/
Website Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#6

08-13-2014, 05:26 PM
Really Steve? With the cabinets you are making.....

I got around to coloring the cabinet. Just have to add the gold paint and put her back together. Oh wait, I didn't clear the cabinet yet, Icon_crazy

I can send the files to anyone who needs them with all specs.


Attached Files Image(s)

Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
(This post was last modified: 08-13-2014, 05:27 PM by OldRestorer.)
Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#7

08-14-2014, 11:18 AM

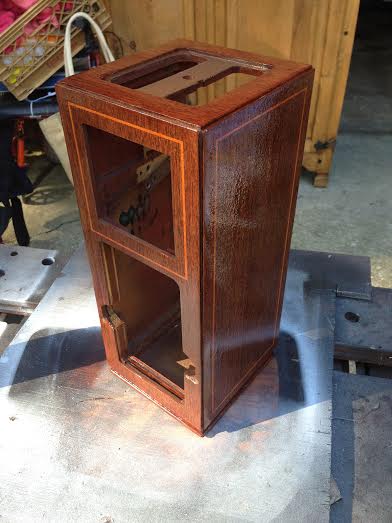

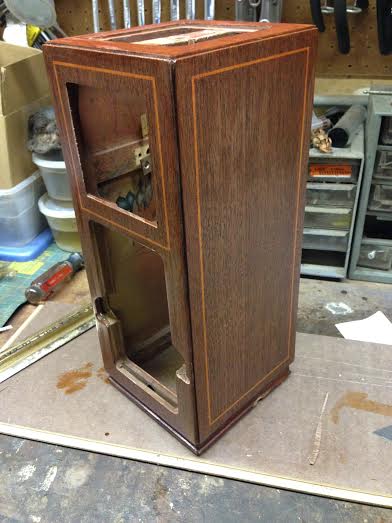

Took her outside in this gorgeous weather and gave her a bunch of coats of lacquer.


Attached Files Image(s)

Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
morzh
Odobenus rosmarus
******
Posts: 16,509
Threads: 572
Joined: Oct 2011
City: Jackson State, Province, Country: NJ
#8

08-14-2014, 01:34 PM
She's a good looking one!

(Don't get any ideas!)
Find
Eliot Ness
Phorum Expert
*****
Posts: 3,157
Threads: 59
Joined: Apr 2011
City: Lexington, KY
#9

08-15-2014, 07:53 AM
Pretty impressive Kirk. Did you use an ink jet printer?
John KK4ZLF
Lexington, KY
"illegitimis non carborundum"
Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#10

08-15-2014, 09:02 AM
Yes, I have a high quality Large scale Inkjet printer.
Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
jerryhawthorne
Phorum Expert
*****
Posts: 1,562
Threads: 56
Joined: Nov 2008
City: Sedona, AZ/Placentia/CA
#11

08-15-2014, 06:41 PM
Kirk, very impressive. I love to see the creativity that so many people have. As a question, was it easier to go the route you did as opposed to veneer? At any rate terrific job.
Best, Jerry
A friend in need is a pest!  Bill Slee ca 1970.
Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#12

08-15-2014, 07:10 PM
I like to go original so Veneer was not really an option. Veneer may have been easier than creating a file and all that but this was more fun Icon_wink

Kirk
Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#13

08-16-2014, 10:10 AM

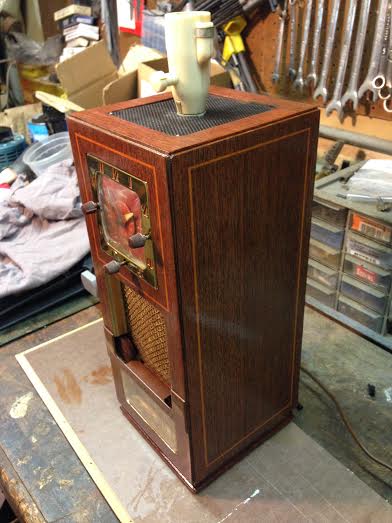

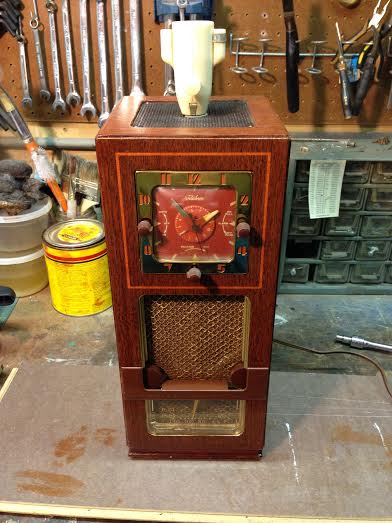

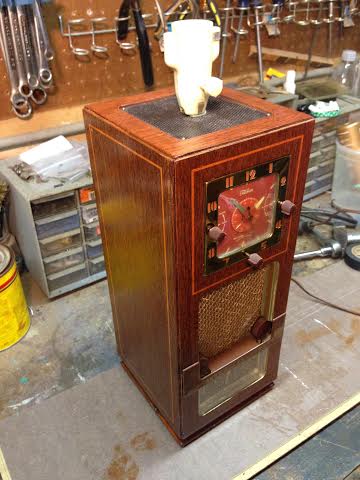

Finished working lamp clock radio...


Attached Files Image(s)

Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
sam
Phorum Expert
*****
Posts: 2,573
Threads: 337
Joined: Jun 2013
City: lawrenceville nj
#14

08-16-2014, 01:59 PM
WOW great job kirk Icon_clapIcon_clapIcon_thumbup
Find
OldRestorer
Electronic geneus
*****
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
#15

08-16-2014, 02:46 PM
Thanks,
I am happy with the outcome. All I need is the shade bracket and shade.


Kirk
Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Find
