Potentiometer
Pillo69
Junior Member
**
Posts: 29
Threads: 7
Joined: Aug 2014
City: España
#1

10-02-2014, 02:11 PM
In the scheme of Philco 80 jr is the value of the potentiometer 20 kOhm.

In the radio that I have the value of 10 kOhm.

This value of 10 kOhm can be valid?.

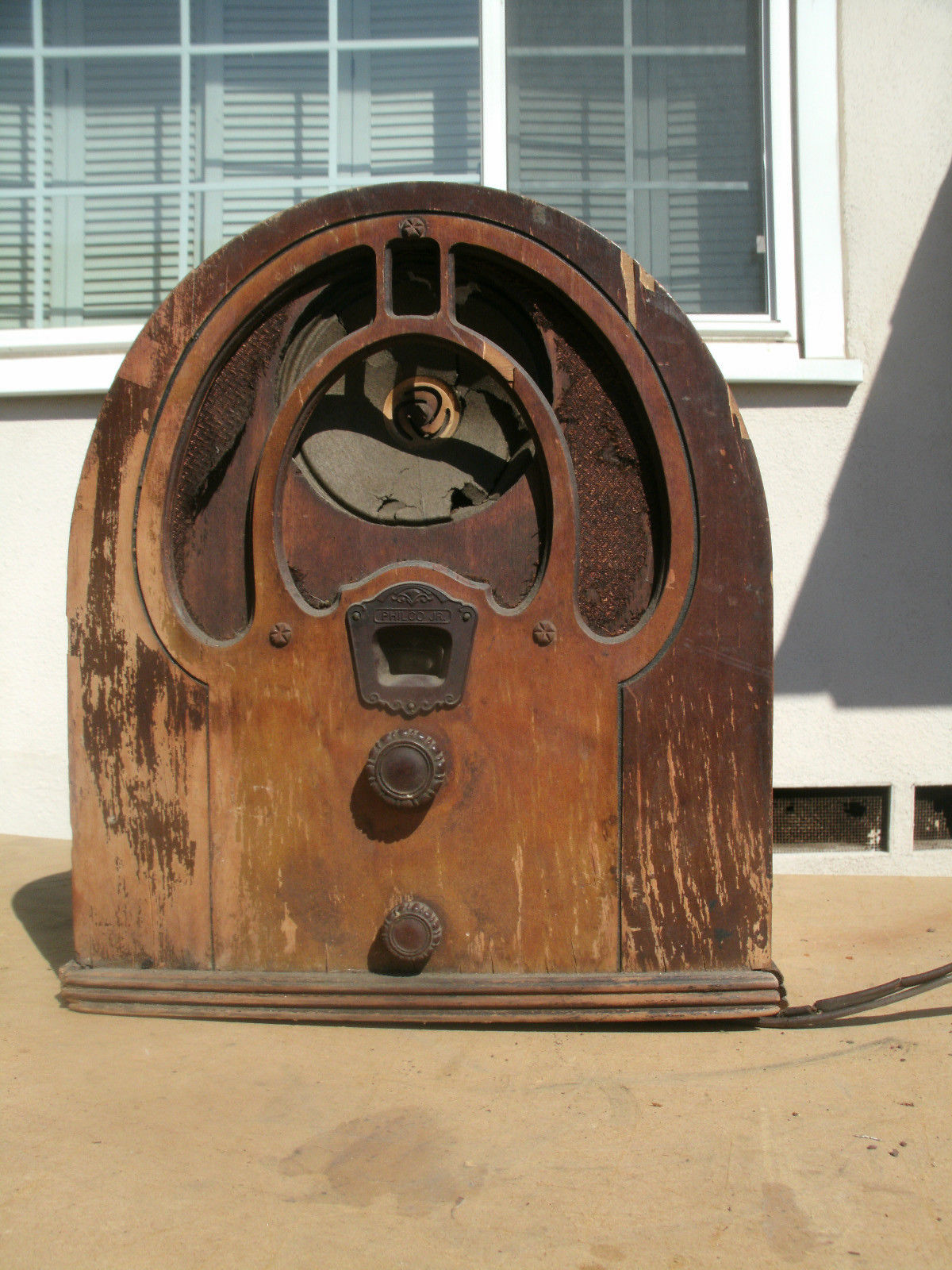

I'll be posting photos in the right places, but advance one.


Attached Files Image(s)

Find
klondike98
Phorum Moderator
******
Posts: 5,584
Threads: 291
Joined: Nov 2012
City: Wilsonville State, Province, Country: OR
#2

10-02-2014, 03:14 PM
Your volume pot was replaced at some point in the past. It's in series between the antenna and antenna coil.  You'll just have less ability to lower the volume.
Cheers,
Bob
[Image: https://www.dropbox.com/s/5m63ib99yfx2eg....jpg?raw=1]
Bob's Restorations Web Page
Website Find
Pillo69
Junior Member
**
Posts: 29
Threads: 7
Joined: Aug 2014
City: España
#3

10-02-2014, 05:45 PM
This potentiometer is logarithmic or linear?.
Find
