Philco Model 114 or 506 Chassis Confirmation
DannyinCleveland
Junior Member
**
Posts: 7
Threads: 4
Joined: Jul 2011
City: cleveland ohio
#1

12-07-2018, 03:00 PM
Hi All,

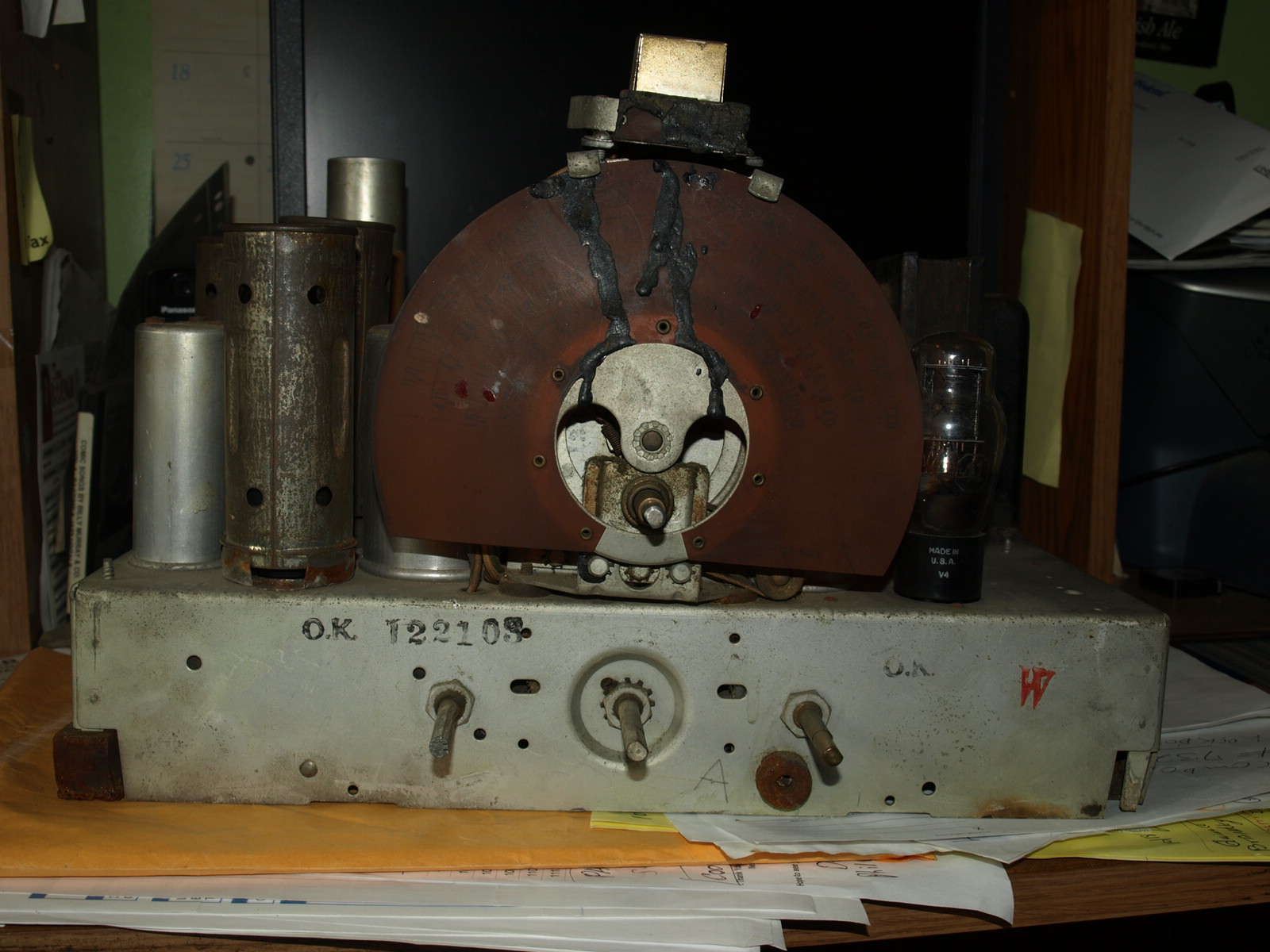

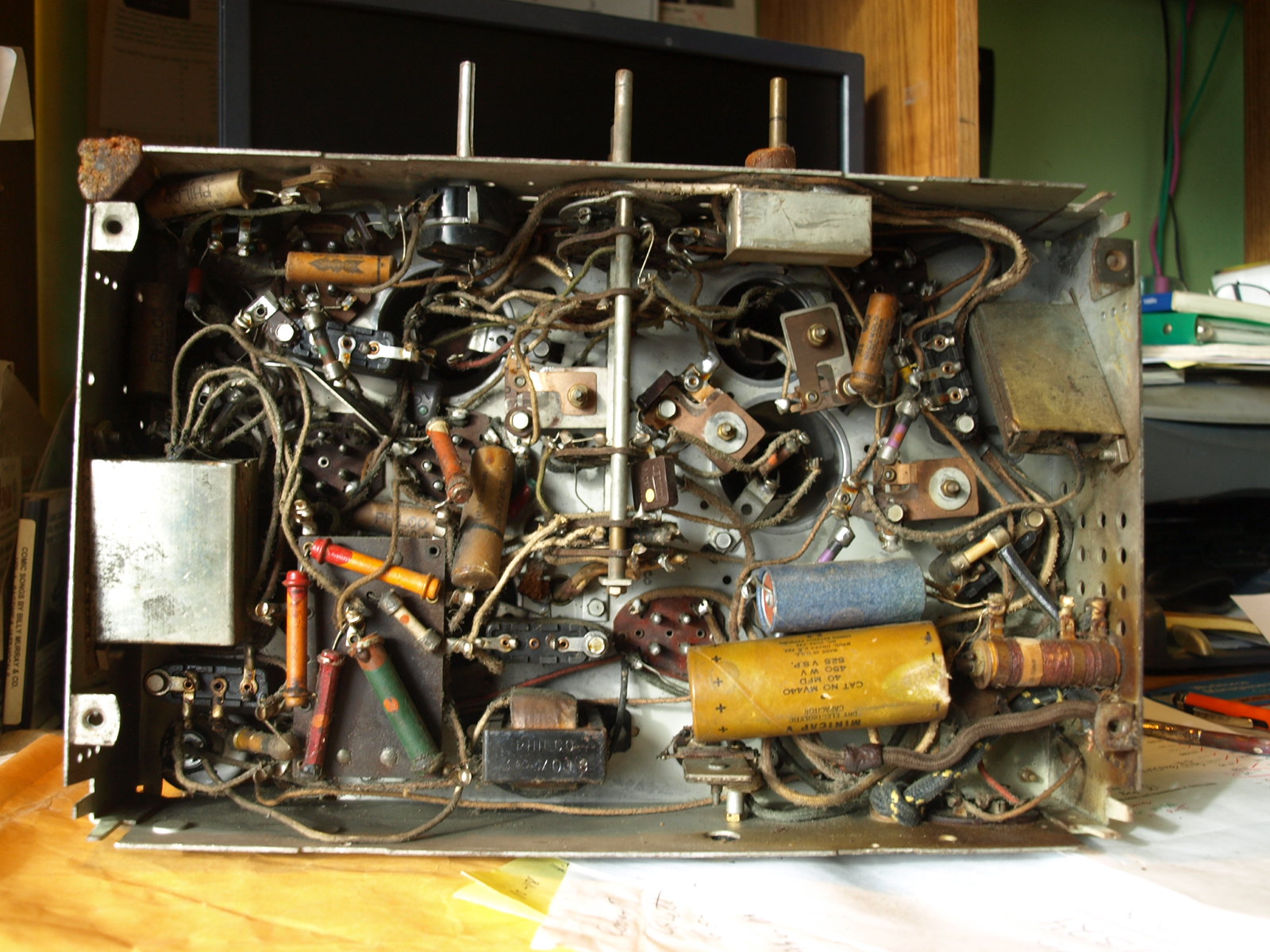

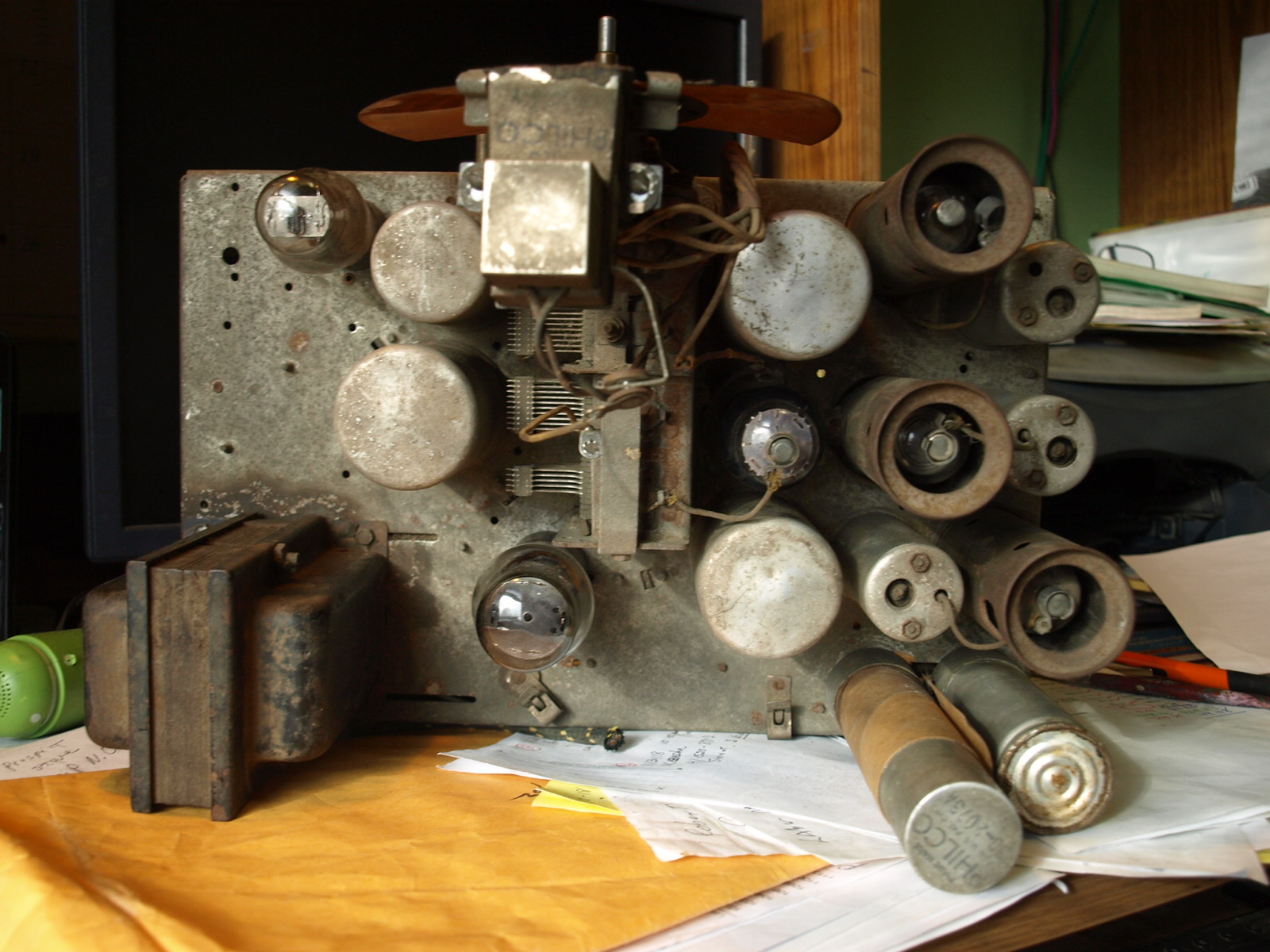

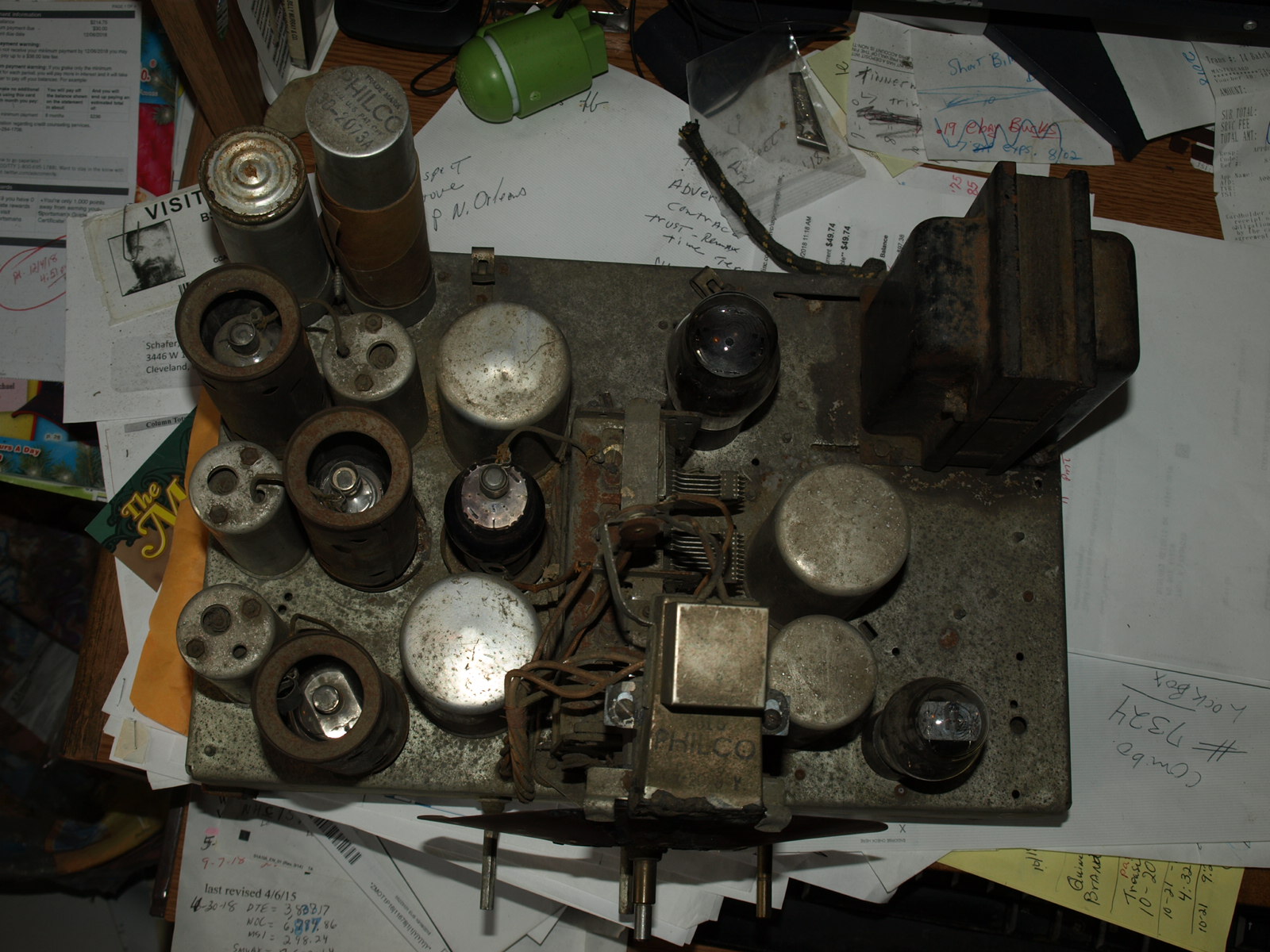

Got this nice Philco chassis that  I would like to positively identify.  From my findings I would think it to be from a model 114 or 506.  The output tube that came with the chassis is a type 41 (wrong?).  The dial scale is part # 27-5065.  Just want to verify for proper ID for storage tagging.  I've never seen a model 506, rare?  Nice piece of furniture!

Thanks in advance


Attached Files Image(s)

Danny in Cleveland
Find
Radioroslyn
Phorum Expert
*****
Posts: 7,301
Threads: 269
Joined: Dec 2009
City: Roslyn Pa
#2

12-07-2018, 03:23 PM
Hi Danny and welcome,
Your chassis is a model 144 code 126.
http://www.nostalgiaair.org/Resources/137/M0013137.htm
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!

Terry
