So I picked up this radio with another Philco purchase and am at a complete loss as to its manufacturer or other details. Can anyone help in identifying this lil’ guy? I want to get schematics but I don’t know where to track it down because there’s no information whatsoever. My only clue is the “Hollywood “ dial.
Posts: 13,776
Threads: 580
Joined: Sep 2005
City: Ferdinand
State, Province, Country: Indiana
--
Ron Ramirez
Ferdinand IN
Posts: 7,301
Threads: 269
Joined: Dec 2009
City: Roslyn Pa
Invisible picture...
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!
Terry
Posts: 29
Threads: 7
Joined: Sep 2019
City: Cottage Grove
State, Province, Country: Oregon

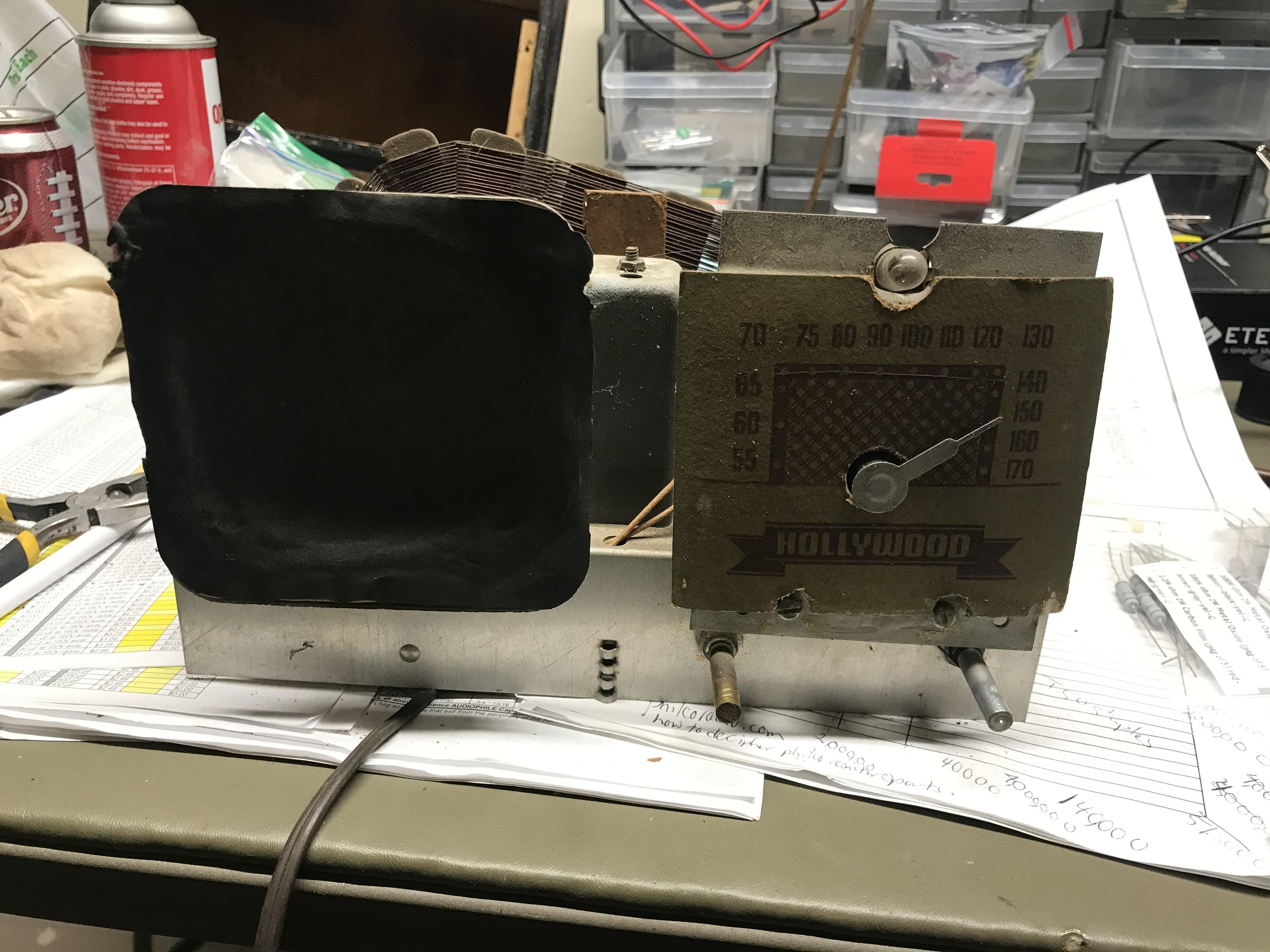

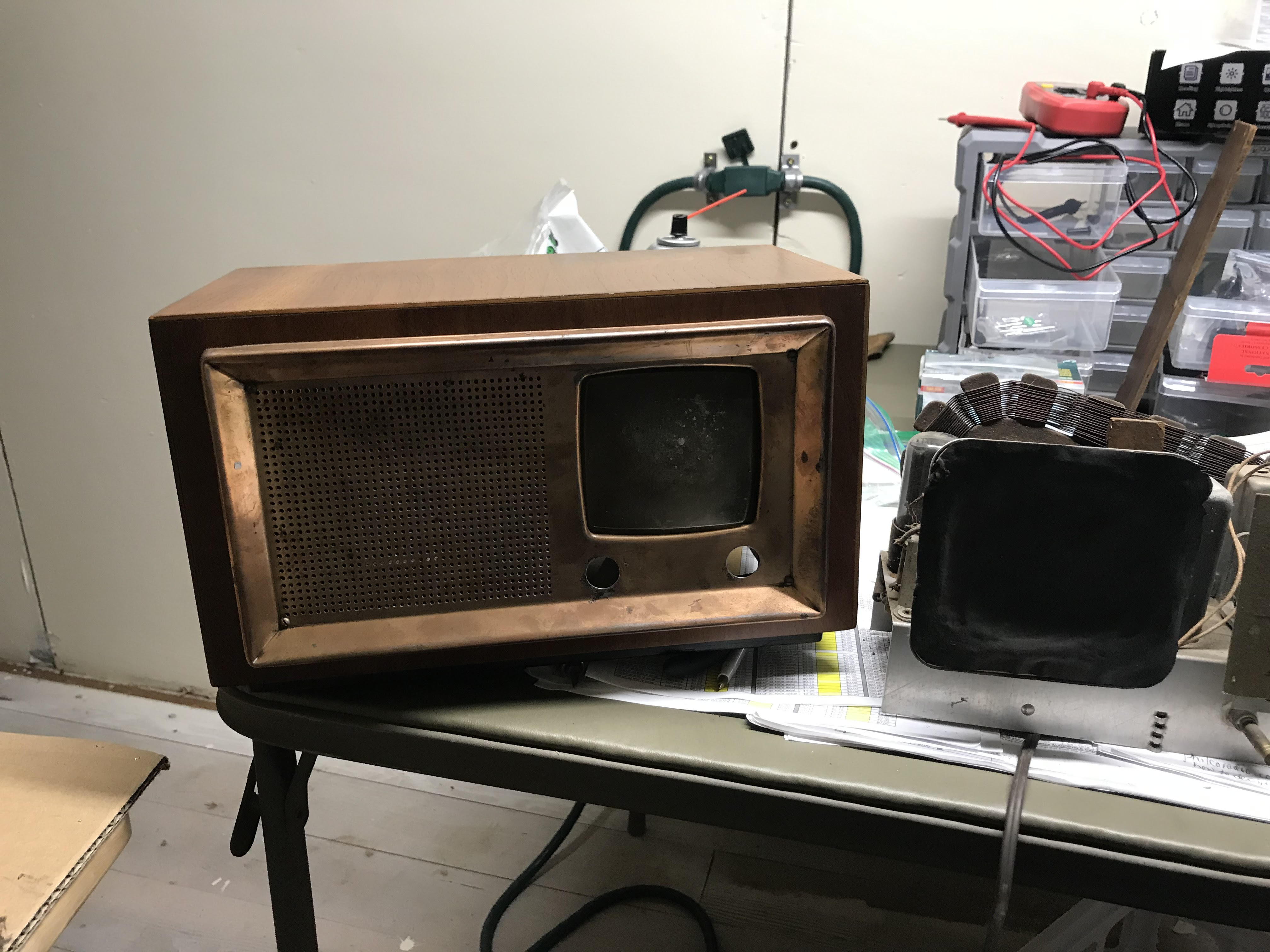

Okay, don't know why I couldn't load pics from phone so I finally got to a desktop. Here are the photos
Posts: 7,301
Threads: 269
Joined: Dec 2009
City: Roslyn Pa
Methinks it's a run of the mill post war ac/dc set and not manufactured by Philco.
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!
Terry
(This post was last modified: 12-27-2019, 05:44 PM by Radioroslyn.)
Posts: 29
Threads: 7
Joined: Sep 2019
City: Cottage Grove
State, Province, Country: Oregon
Yeah, I couldn't find any markings of any kind indicating its manufacturer. Sylvania tubes, carbon resistors, wax/paper caps,. . .none of it leads me to what it is. Thanks for your response.
Posts: 4,106
Threads: 310
Joined: Nov 2013
City: Kings Park NY
Can you post the tube numbers please? It is probably an EMI radio and I know I have seen its cabinet before.
Kirk
Times I have been electrocuted in 2021
As of 1/01/2021
AC: 4 DC: 1
Last year: 6
Posts: 29
Threads: 7
Joined: Sep 2019
City: Cottage Grove
State, Province, Country: Oregon

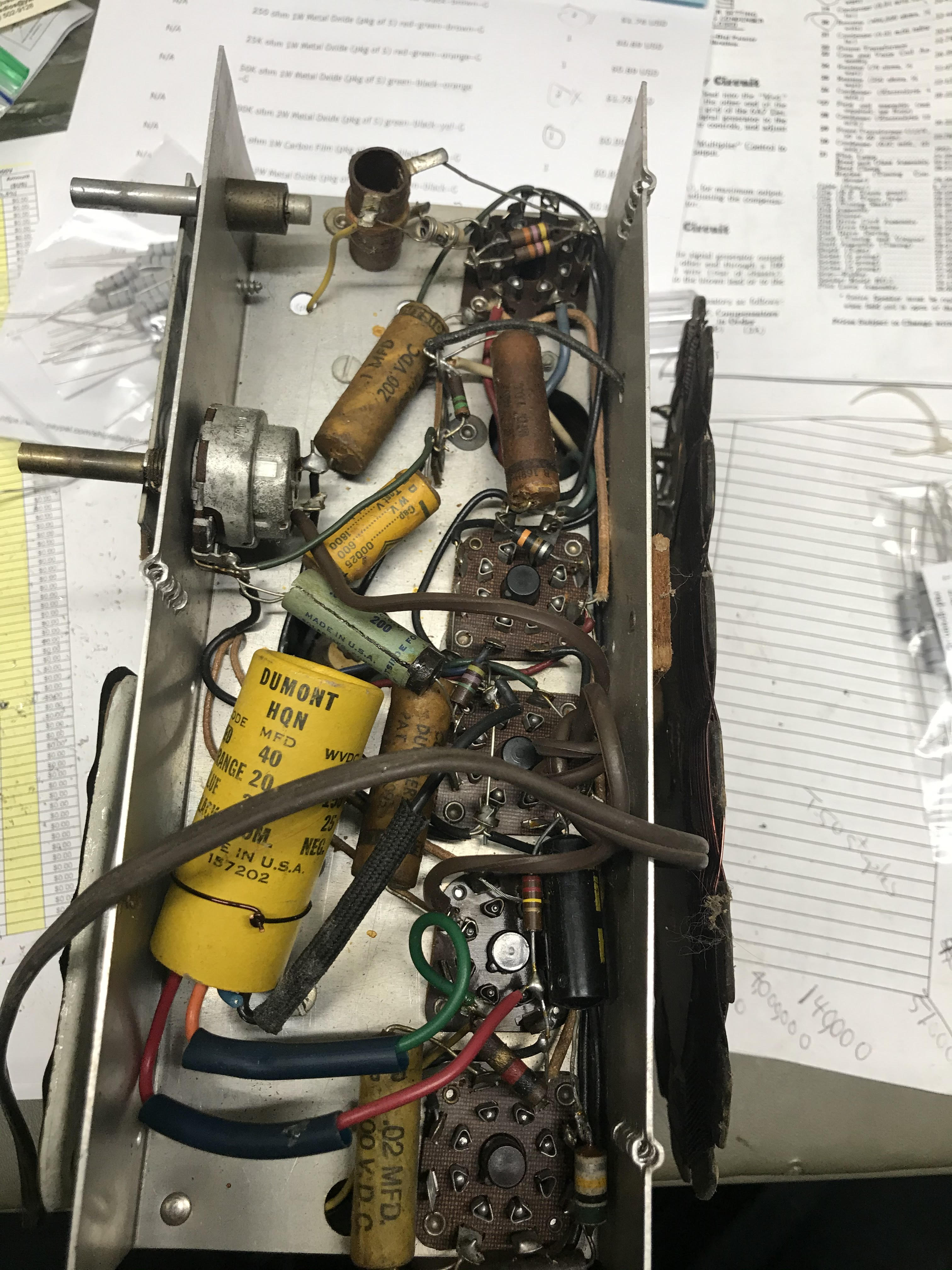

When I get home from work will post the tube numbers. I am going to include this picture, not that I think it will trigger any new clues, but notice the blue wire on the electrolytic is severed and not used. . .this is why I want to identify this thing and get the schematic.
(This post was last modified: 12-28-2019, 04:51 PM by mrmurr2003.)
Posts: 1,824
Threads: 114
Joined: Jul 2014
City: Sneedville, TN
From the look of things, I'd say that DuMont multi section is a replacement for the original filter condenser, The other condensers look older.
Posts: 104
Threads: 11
Joined: Oct 2005
City: Indianapolis, IN
Gilfillan used that cabinet.
Posts: 1,262
Threads: 32
Joined: Jan 2014
City: Wellborn Florida
(This post was last modified: 12-29-2019, 02:38 PM by David.)
Posts: 816
Threads: 25
Joined: Mar 2014
City: Louisville, KY
Mrmurr's appears to have the octals.
(This post was last modified: 12-29-2019, 03:56 PM by Jake Blake.)
Posts: 29
Threads: 7
Joined: Sep 2019
City: Cottage Grove
State, Province, Country: Oregon
Posts: 29
Threads: 7
Joined: Sep 2019
City: Cottage Grove
State, Province, Country: Oregon
Thanks much! It certainly does look like a Gilfillan 56B! My only question is the dial, but since it looks as though it had been worked on before, I wonder if it's just something non- OEM.
Posts: 1,262
Threads: 32
Joined: Jan 2014
City: Wellborn Florida

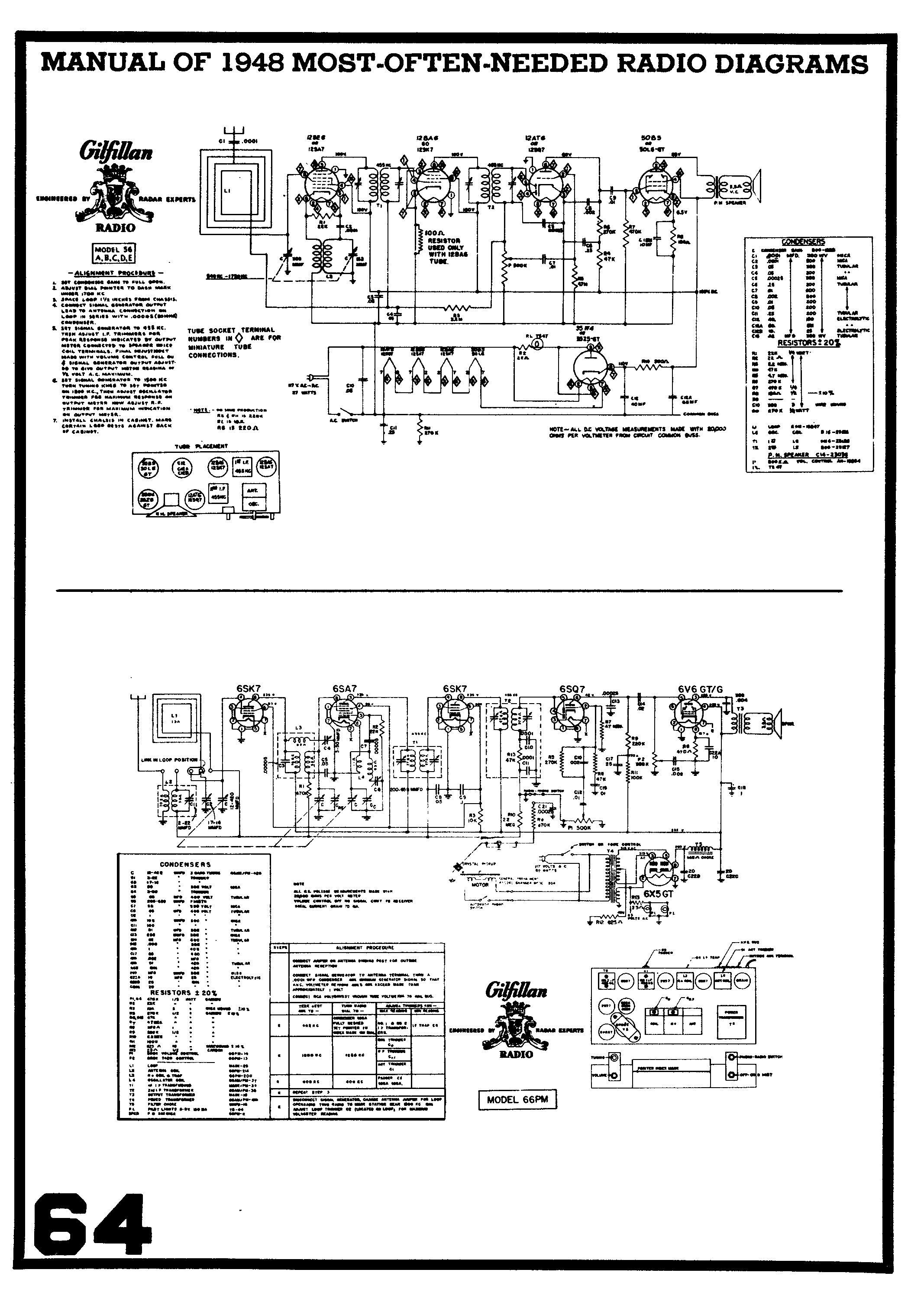

Beitmans from 1948 shows speaker and tuner correct location model 56 ABCDE
