38-690 tube locations
WyTex
Senior Member
****
Posts: 289
Threads: 42
Joined: Jan 2014
City: Jeffersonville State, Province, Country: PA
#1

11-21-2022, 11:24 AM
Hi guys -

Looking for a source for tube locations on a 38-690, specifically the power chassis mounted at the bottom.  None of my paperwork or schematics show their location.

Thanks and Happy Thanksgiving!
Paul
Find
GarySP
Super Moderator
******
Posts: 2,160
Threads: 158
Joined: Jan 2013
City: Westland, MI
#2

11-21-2022, 01:17 PM
Right here in the Philco Radio Library. Open Service Info and select 1937-38 Wiring Diagrams. Should have what you're looking for. Take care and BE HEALTHY! Gary
"Don't pity the dead, pity the living, above all, those living without love."
Professor Albus Dumbledore
Gary - Westland Michigan
Find
WyTex
Senior Member
****
Posts: 289
Threads: 42
Joined: Jan 2014
City: Jeffersonville State, Province, Country: PA
#3

11-22-2022, 08:41 AM
Thanks but unfortunately it does not.

Still searching.

Paul
Find
462ron
Phorum Expert
*****
Posts: 872
Threads: 50
Joined: Feb 2013
City: Shenandoah, State, Province, Country: Pennsylvania
#4

11-22-2022, 09:39 AM

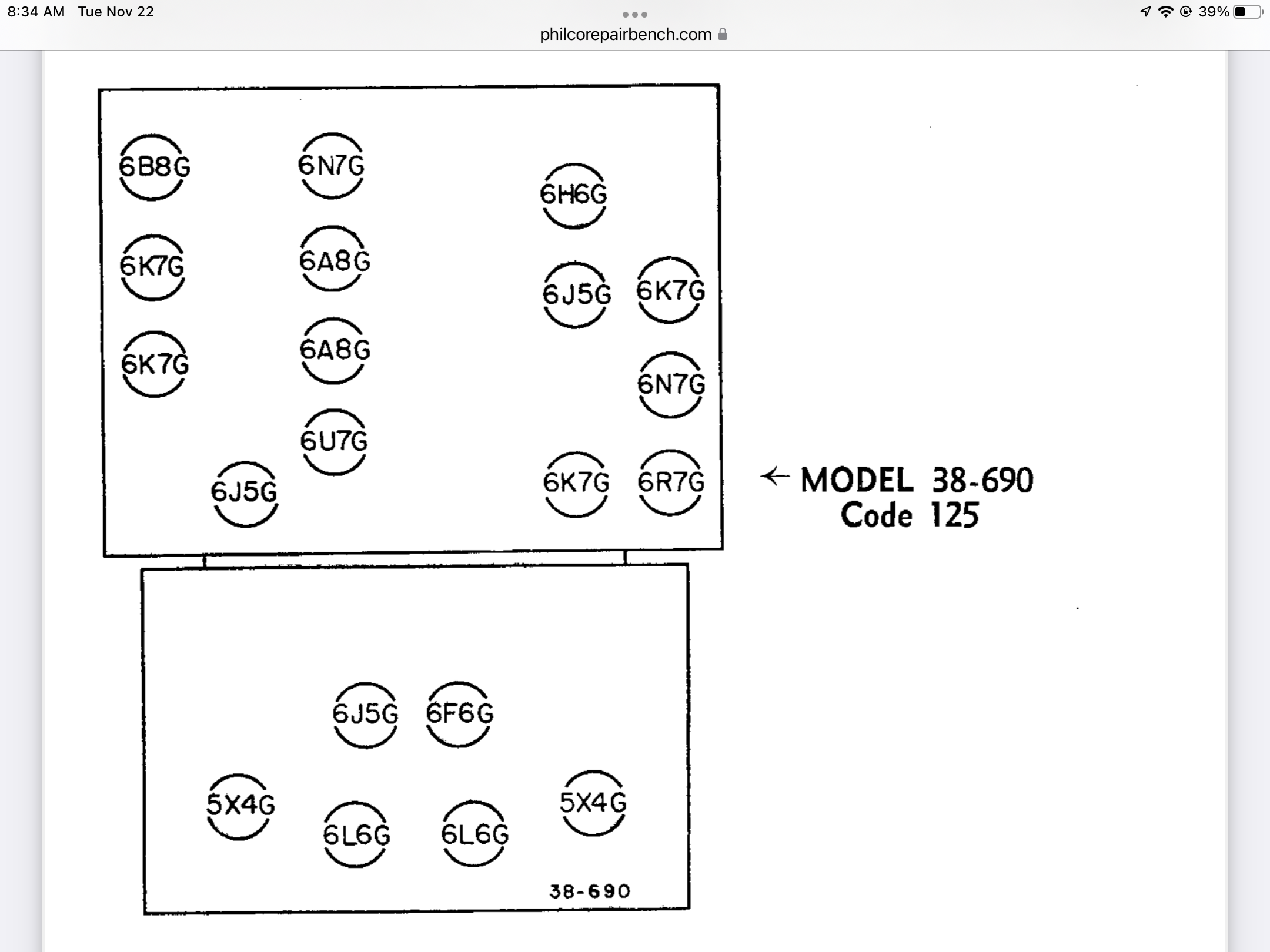

Found this on the… Philcorepairbench.com  site.

Ron
Bendix 0626.      RCA 8BX5.   RCA T64
Philco 41-250.    Philco49-500
GE 201.             Philco 39-25
Motorola 61X13. Philco 46-42        Crosley 52TQ
Philco 37-116.    Philco 70
AK 35                Philco 46-350
Philco 620B.       Zenith Transoceanic B-600
Philco 60B.         Majestic 50
Philco 52-944.    AK 84
Find
WyTex
Senior Member
****
Posts: 289
Threads: 42
Joined: Jan 2014
City: Jeffersonville State, Province, Country: PA
#5

11-27-2022, 08:20 AM
Thank you!
