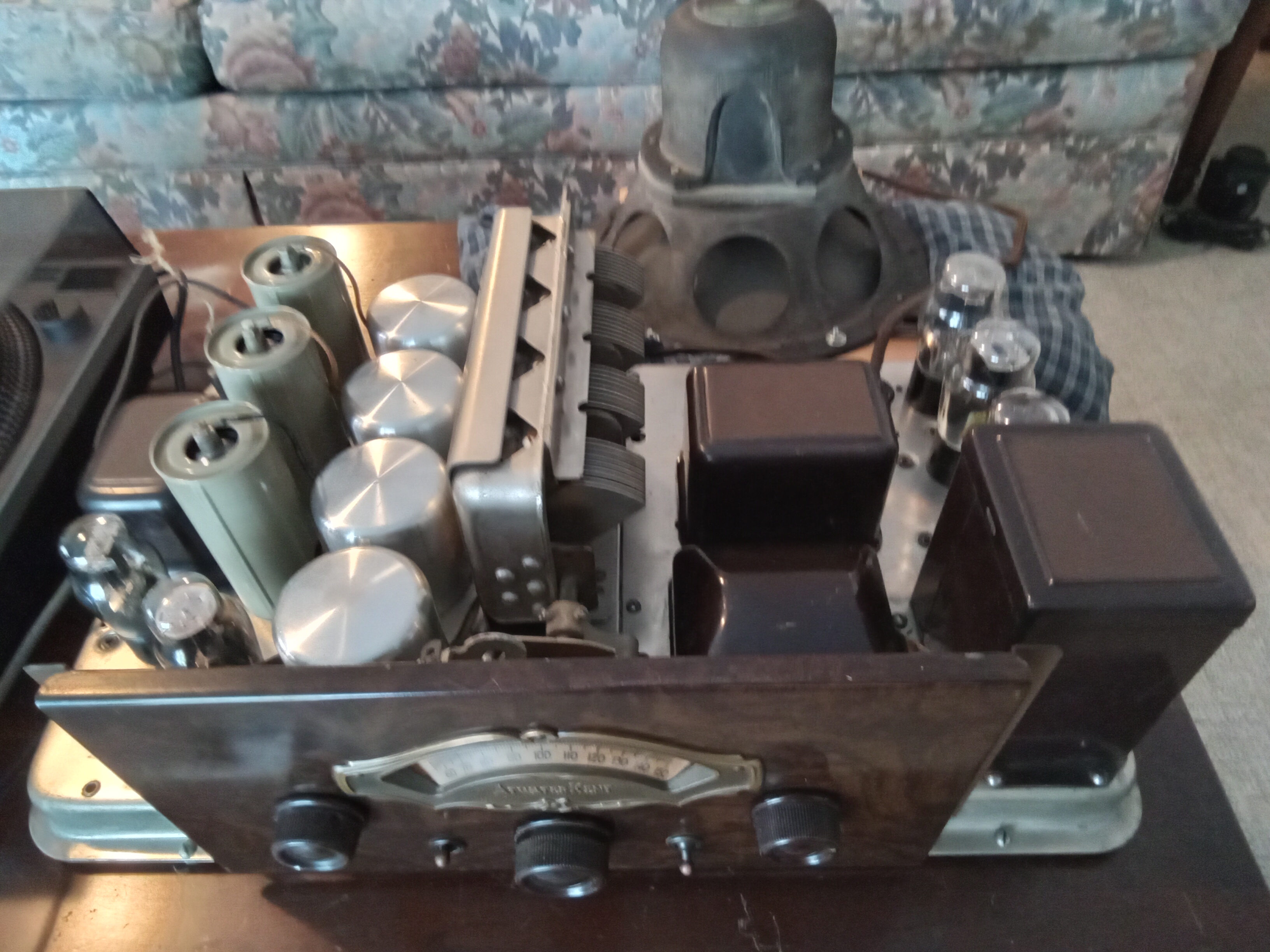

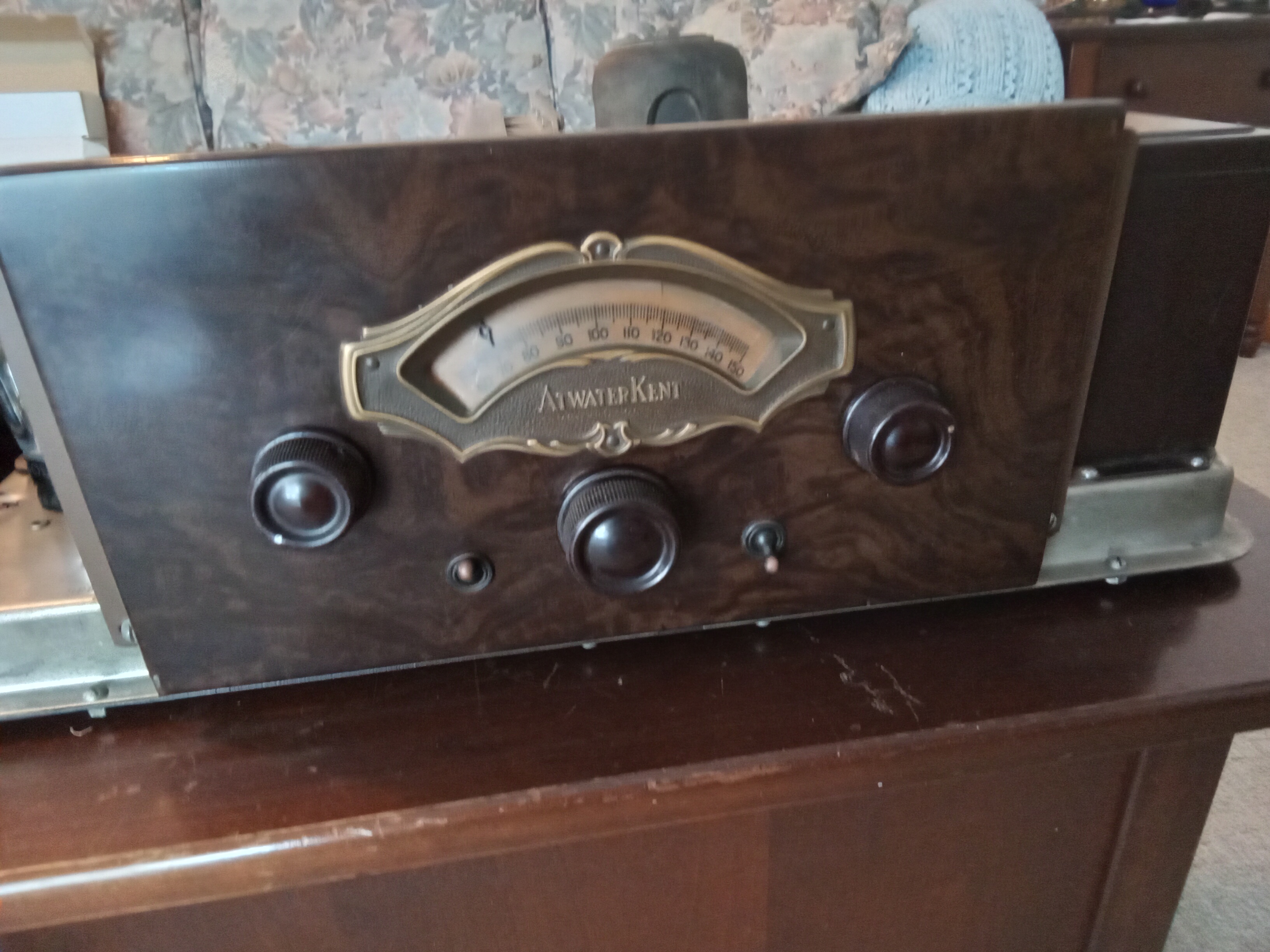

Just finished getting this AK 76 Type L TRF chassis working yesterday. I believe it was the last of the AK TRF production. For you AK purists, it was not totally recapped and most of the non wire-wound resistors were way out of spec or open.
Receives stations across the dial and distant/local switch is very effective. Lots of volume with the pp 45s. That's the Type N 12 inch speaker in the background.
(This post was last modified: 02-08-2023, 02:05 PM by
RodB.)
Posts: 1,288
Threads: 11
Joined: Jul 2020
City: Greenlawn
State, Province, Country: NY
Very pretty!!
"Do Justly, love Mercy and walk humbly with your God"- Micah 6:8
"Let us begin to do good"- St. Francis
Best Regards,
MrFixr55
Posts: 4,945
Threads: 54
Joined: Sep 2008
City: Sandwick, BC, CA
How was the wiring on the power transformer? Some of those A.K sets used rubber/gutta percha wire on the transformer leads which can perish, fortunately it's easier to replace then may sets since they used terminals inside.
Regards
Arran
Posts: 1,190
Threads: 46
Joined: Feb 2015
City: Roseville, MN
The owner brought me the set with a shorted hv secondary so he decided to buy a donor set on ebay. That set is clean and the power transformer has some deteriorated insulation on the 5v winding leads. Covered it with heat shrink. Also transferred the front panel to the new set because it is in better shape.
Posts: 2,197
Threads: 159
Joined: Jan 2013
City: Westland, MI
Nice job, Rob! The old girl cleaned up nicely. Take care and BE HEALTHY! Gary
"Don't pity the dead, pity the living, above all, those living without love."
Professor Albus Dumbledore
Gary - Westland Michigan
Posts: 891
Threads: 51
Joined: Feb 2013
City: Shenandoah,
State, Province, Country: Pennsylvania
Wow Rod, that AK76 sure came a long way technologically for a TRF compared to my AK35! Very nice!
Ron
Bendix 0626. RCA T64 Philco 20B
Philco 41-250. Philco49-500
GE 201. Philco 39-25
Motorola 61X13. Philco 46-42 Crosley 52TQ
Philco 37-116. Philco 70
AK 35 Philco 46-350
Philco 620B. Zenith Transoceanic B-600
Philco 60B. Majestic 50
Philco 52-944. AK 84
(This post was last modified: 02-09-2023, 10:09 AM by
462ron.)
Posts: 1,190
Threads: 46
Joined: Feb 2015
City: Roseville, MN
Ron, yes, the circuitry has bypass and filter capacitors everywhere but has 2 ps chokes, a speaker field coil, no electrolytics. It must weigh 30 lbs, then the speaker is another 20.
Posts: 16,577
Threads: 574
Joined: Oct 2011
City: Jackson
State, Province, Country: NJ
I only have 3 AKs, having restored 2 of them; when I hold a chassis in my hands, everythings creams "QUALITEEEEE". They are beautiful. They look like they have just came out from the factory 90 years after they had. Very few radios do.
