Does anyone have the schematic for the Philco 36-620F? I've searched the Philco site and Nostalgia Air but couldn't find it under the year for
1936.

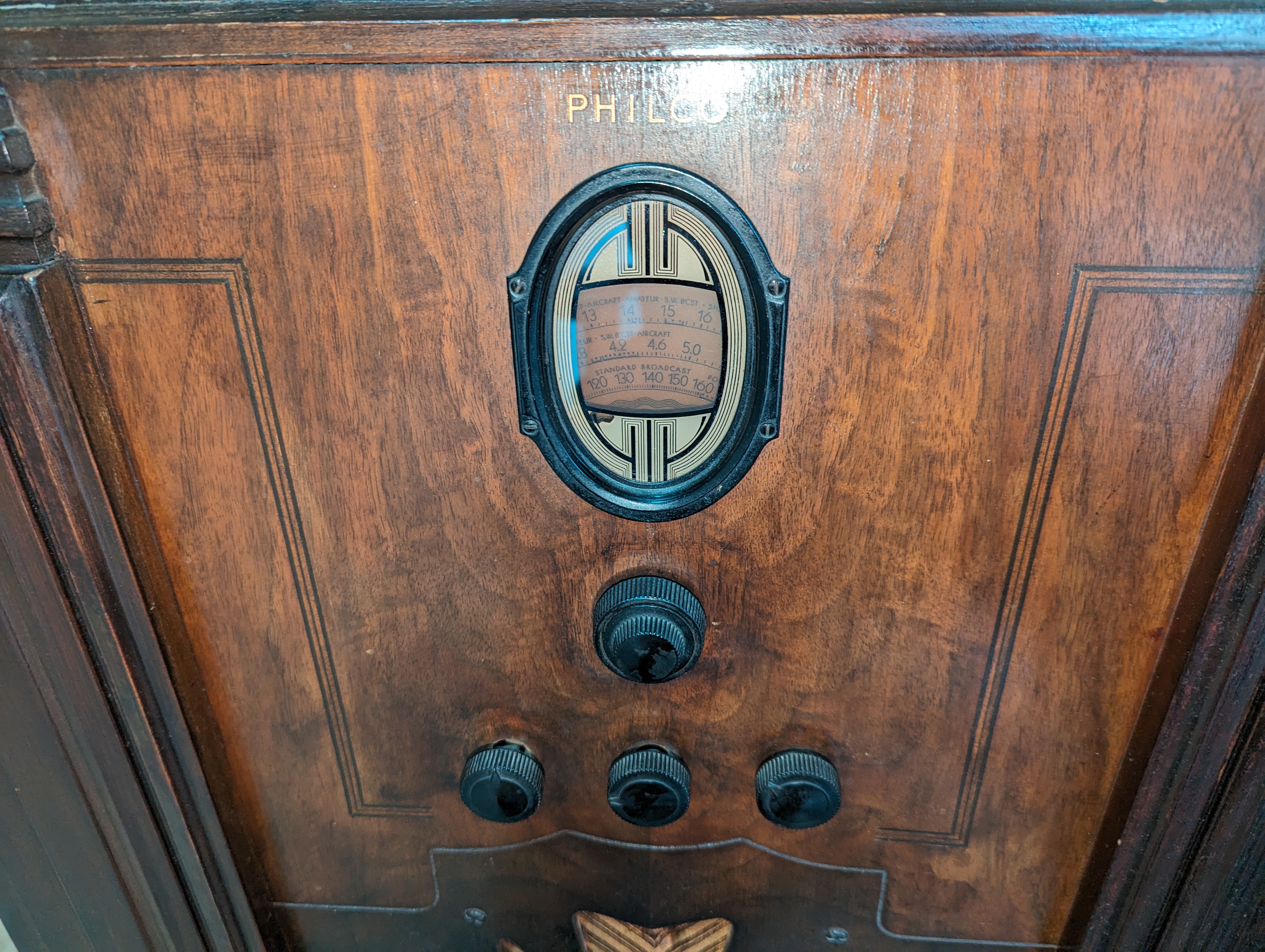

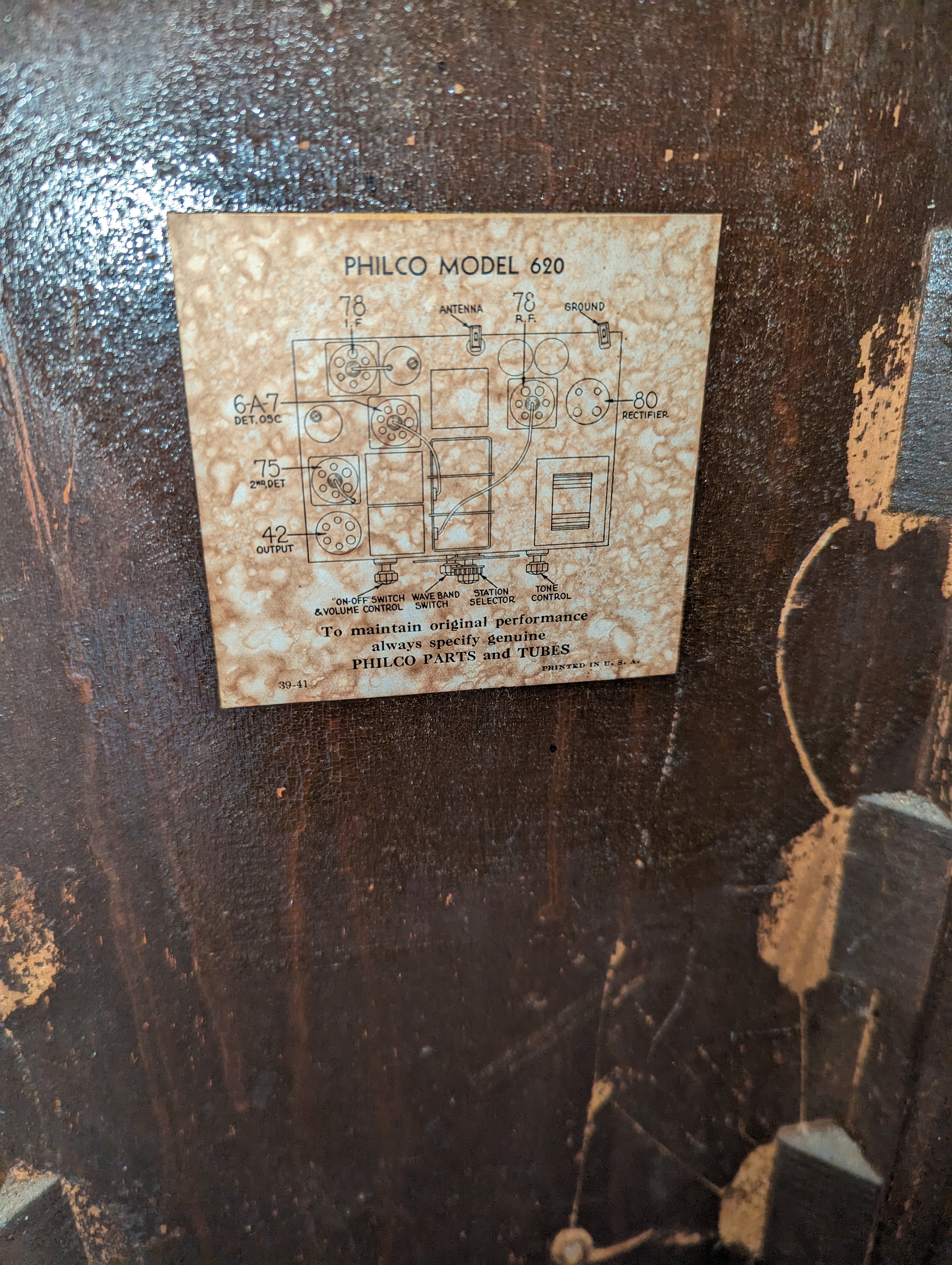

The tubes are 6A7, 75, 42, 78 (2), and 80. I can find a picture of it when I go through the old radio pictures online, but no schematic.
This radio also has a .02 1000 D.C.W.V. I can't seem to find one of those listed on the capacitor sites.
Thanks in advance - Dan
Posts: 5,170
Threads: 274
Joined: Nov 2012
City: Wilsonville
State, Province, Country: OR
Welcome to the Phorum!
Its in our Library. See
https://philcoradio.com/library/
The link to the specific schematic is:
https://philcoradio.com/library/download...l.%201.pdf
Posts: 7,301
Threads: 269
Joined: Dec 2009
City: Roslyn Pa
If you take a look your 620 doesn't have a year designation as the pre 1937 don't. That's why you couldn't find it under the 36-620 listing. Your 1kv cap you can take two .047mfd @ 630v and connect them in series to give you .0235mfd @ 1260v.
When my pals were reading comic books
I was down in the basement in my dad's
workshop. Perusing his Sam's Photofoacts
Vol 1-50 admiring the old set and trying to
figure out what all those squiggly meant.
Circa 1966
Now I think I've got!
Terry
(This post was last modified: 03-16-2024, 03:16 PM by
Radioroslyn.)
Posts: 4,892
Threads: 54
Joined: Sep 2008
City: Sandwick, BC, CA
That's an Aerovox branded capacitor, so a replacement, whether it has to be rated at 1000 VDC is unknown, unless it was found connected across the output transformer primary.
Regards
Arran
Posts: 4
Threads: 2
Joined: Mar 2018
City: Bowie, Md
Thanks for the response. Now that I have the schematic, I can track it down as to the specific requirements.
