Precise 111m tube tester restoration
#20

UPDATE:

I realized that I had found and made notes on a couple errors on tube settings and forgot to update my thread. Hope this helps someone.

50L6 settings are wrong. Use the 25L6 setting and 50v heater. This is on most charts.

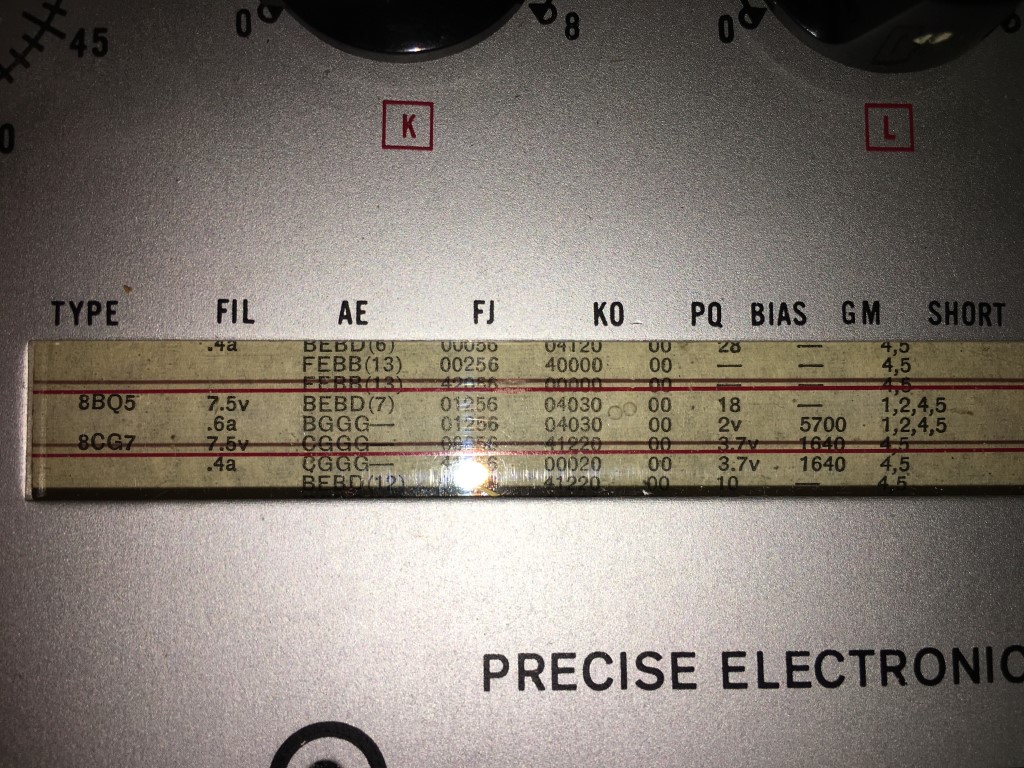

6BQ5 settings are wrong, use 8BQ5 settings with 6v heater. This is not on all of the Precise tube charts, so here are those settings:


If I could find the place called "Somewhere", I could find "Anything" Icon_confused

Tim

Jesus cried out and said, "Whoever believes in me , believes not in me but in him who sent me" John 12:44
